obdtool in uk(Tested) Lexia 3 PP2000 Diagbox for Peugeot and Citroen vehicle model coverage
Having been playing around lexia 3 diagnostic tool for PSA groups, I have tested successfully on lots of Citroens and Peugeots. Since there is no detail function and vehicle list on the webpage (as list where mine from), I should be first one.
My Lexia 3 PP2000 diagbox: €69.00 from obd tool site
LEXIA 3 V48 PP2000 V25 Package list:
1pc x Main unit with extension OBD2 cable
1pc x Long 9pin to USB cable
1pc x Short 9pin to USB cable
1pc x OBD2 cable
1pc x DVD
Software version:
Lexia 3 diagnostic tool function achieves:
1. Read/ Erase trouble codes
Display all stored and pending faults codes with full description, e.g “Rail pressure-too low pressure”
Program support report or copy to clipboard
2. Read identification
Displays full identification if ECU control units, e.g part number, software/hardware version
3. Auto scan
Detect all ECU control units in the car and read diagnostic faults codes
4. Actuator test / customize settings
Activates particular actuators, like lock/unlock wheel, lock/unlock door, enable fuel pump etc
5. Programming functions
Lexia 3 is able to access multi-system, like engine, transmission, brake, airbag, immobilizer, body to proceed configuration programming
6. Measured values
Display live data, like engine speed, battery voltage, oxygen sensor, coolant temper,
7. Customize settings
Activate cruise control, disable DRL (daytime running lights), disable TPMS lights etc.
Tested vehicle models with Lexia 3 PP2000 diagbox
Citroen:
1995 Citroen XM 2.5 TD Norway
1998 Citroen XantiaⅡ2.0 16V Russia
1998 Citroen XM 2.0 TurboCT Portugal
2001 Citroen C5 HDi Portugal
2001 Citroen C5 2.0 HPi V16 Netherland
2001 Citroen Saxo 1.1 Finland
2001 Citroen 2.0 HDi 90hp Belarus
2001 Citroen 2.2 HDi Poland
2002 Citroen Evasion 2.0HDi RHW Belarus
2003 Citroen C3 1.4 Auto UK
2003 Citroen Xsara Picasso 1.8 16V Netherland
2003 Citroen Xsara Picasso 1.8 16V SX Finland
2004 Citroen Xsara 1.6 V16 110hp Belarus
2007 Citroen C5 2.0 HDi Hungary
2008 Citroen C3 1.4 Finland
2009 Citroen C4 1.6 THP Greece
2010 Citroen C4 HDi Argentina
Peugeot Planet 2000 for Peugeot:
1997 Peugeot 406 1.8i XU7JP4 Belarus
1998 Peugeot 106 Electric Norway
1999 Peugeot 406 2.0 HDi 90hp Belarus
2001 Peugeot 206 XR 1.6 V8 Argentina
2001 Peugeot 406 2.0 HDi 110hp Belarus
2001 Peugeot 406 2.2 HDi Finland
2001 Peugeot 607 2.2 HDi Diesel Ireland
2002 Peugeot 206 Petrol Russia
2002 Peugeot 307 2.0HDi Finland
2002 Peugeot 406 1.8i EW7J4 Belarus
2003 Peugeot 406 2.0 HDi 110hp Belarus
2003 Peugeot 307 1.6 XS Petrol Malaysia
2004 Peugeot 307 1.6 HDi SXI 56 UK
2005 Peugeot 307 2.0 HDi SW 100Kw V16 Austria
2006 Peugeot 407 2.0 HDi UK
2007 Peugeot 207 1.6 V16 Argentina
2007 Peugeot 307 1.6 Hdi Finland
2010 Peugeot 307 1.6 V16 Argentina
ALL the test results are based on Lexia 3 V45, the latest V48 adds more model possibility, especially Peugeot 307. Because V45 works week on Pug 307 module.
Lexia-3 V48 PP2000 V25 Citroen/Peugeot Diagnostic Support Peugeot 307 Avec Diagbox V7.57:
This is from obd tool website technical support: (Tested) Lexia 3 PP2000 Diagbox for Peugeot and Citroen vehicle model coverage
How to activate Citroen Cruise Control with Lexia 3 Diagbox diagnostic tool
Equipment:
Lexia 3 V48 PP2000 V25 Diagbox V7.36 (the latest is V7.57) for Peugeot and Citroen diagnosis
Vehicle model Example
Citroen Berlingo
Activating Berlingo Cruise control instruction:
1) Install and activate Lexia 3 Diagbox software. Free download related user manual on obdtool.co.uk webpage.
2) Come to the main menu, select vehicle brand as Citroen
3) Select vehicle model Berlingo-> Berlingo (B9)
4) Confirm the VIN read information and then click green tick icon to continue
5) Select DELIVERY OF VEHICLE TO CUSTOMER
6) Go down the next program and select ACCESSORY
7) Turn the ignition ON with engine off
8) Manually enter the vehicle’s RPO/DAM number
9) The DAM number is available on a sticker attached to the driver side front/rear door pillar which also includes tire pressures etc. Here the DAM number is 5-digit number marked red in picture below.
10) Confirm the PRO number or Build code of the vehicle entered previously and tick green icon.
11) Re-enter the vehicle’s RPO/DAM number
12) Switch off the ignition for 30 s and validate to continue.
13) The time is count down to 0.
14) Switch on the ignition switch after 30 s.
15) Switch off the ignition and wait for 15 s. Switch the ignition on again.
16) Cruise control for Citroen is complete
17) Hit Back icon to back to the main function menu and select other diagnostic functions.
18) Exit the Lexia 3 Diagbox diagnostic software program.
This is from obd tool website technical support: How to activate Citroen Cruise Control with Lexia 3 Diagbox diagnostic tool
DIY Program Peugeot new key with Lexia 3 Peugeot Planet 2000
Lexia 3 is the universal diagnostic interface for PSA Citroen and Peugeot. Here is a step-by-step Peugeot 307 new key programming instruction using lexia 3 XS-evolution PP2000 diagbox interface.
Equipment:
A laptop running Win XP/Win 7 mode
Pin code
NOTE:
PIN Code is required during key programming procedure. Record your vehicle PIN code first. Free download Renault Pin code reader software:
Instruction:
1. Install and activate Lexia 3 PP2000 V25 diagnostic software
2. Select vehicle model 307 and wait until the well communication built
3. Check the entering vehicle information
4. Select the application as Peugeot Plant 2000 and confirm it
5. Select test by ECU
6. Select Built-in systems interface
7. The system is reading the ECU in progress, follow and accept the windows prompts.
8. Select Learning option under Carry out the tests menu display
9. Select Programming of keys
10. The system will display key programming procedure when activation process is complete. Confirm to continue.
11. Confirm Unlocking the E.C.U program
12. Manually enter the Confidential code (PIN Code)
13. The system is verifying the PIN code. If the code is correct, the built-in systems interface is ready for programming of keys.
14. Enter the key number to be learnt. The number of keys to be programmed cannot exceed 5.
15. Follow the screen prompt to switch off the ignition
16. Then switch ignition to ON within 15 s.

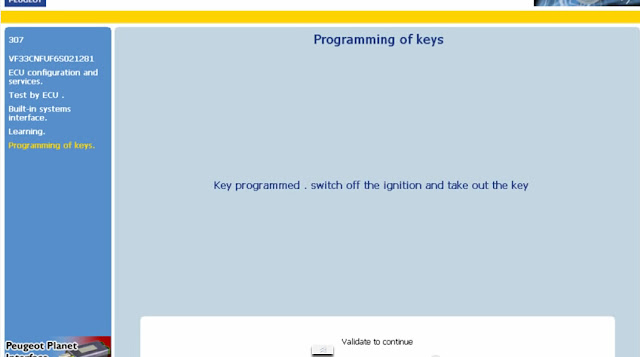

17. Key programmed, switch off the ignition and take out the key
18. Switch ignition ON again and insert the next key in the ignition. Repeat the key programming procedure to program another key. When complete programming, the system will display keys that are programmed.
19. Follow the screen instructions. Check the handbrake is on. For an automatic gearbox, check the gear level is in position “P”. For a manual gearbox, check that the gear level is in neutral
20. Follow the re-synchronies the HF remote controls procedure to operate until the “End of key programming procedure” notice displays. Exit the program.
This is from obd tool website technical support: DIY Program Peugeot new key with Lexia 3 Peugeot Planet 2000
Enable Mitsubishi hidden functions using Lexia 3 PP2000 diagnostic tool
I would never have known that there were "hidden" options in my 2008 Outlander Sport until I got a Lexia 3 pp2000 cable, although it beats me why they wouldn't enable them in the factory and advertise as "features".
The Lexia 3 PP2000 diagnostic tool came with a CD. I noticed that the CD I got with this device had something called "diagbox".
Finally got my device hooked up to my car today. I spent a whole day trying to get XP installed on my DVD, getting the software to work properly, etc.
I enabled the speed-based auto locking (love it) in parking feature using PP2000 and turned off the
annoying seatbelt warning chime. It annoys the heck out of me when I drive without a seatbelt (on private
property, if you're wondering). This evening I saw another option called "comfort flashing" in the PP2000
customer options. This is the feature that lets you slightly tap the turn signal stalk and have it flash 3
times. According to the car manual, the number of flashes can be adjusted usingMMCS. I looked around
but couldn't find the place where I can change the number of flashes (I want to bump mine up from 3 to
5). The option in PP2000 was only to active/deactivate the feature, and there was nothing there that let
me change the parameters of it.
I also want to have both my DRLs and Fog lamps in the same assembly but have not figure out how to do it
yet. Anyways, given the convenience and cheap price, the tool would be worth it.
Lexia-3 V48 PP2000 V25 Citroen/Peugeot Diagnostic Support Peugeot 307 Avec Diagbox V7.57:
http://www.eobdtool.co.uk/wholesale/best-quality-lexia-3citroen-peugeot-pp2000.html
This is from obd tool website technical support: Enable Mitsubishi hidden functions using Lexia 3 PP2000 diagnostic tool
Citroen Peugeot Lexia 3 PP2000 with 100% 921815C chip
Obd tools site (obdtool.co.uk) has extracted PSA Citroen and Peugeot Leixa 3 PP2000 XS Evolution Diagbox diagnostic interface with 100% original 921815C full chip that works perfectly on Peugeot 307, 407 and Citroen C5.
Software version:
Lexia-3 V48,
Peugeot Planet 2000 PP2000 V25,
Diagbox 7.57
Software languages:
English, Chinese, German, French, Japanese, Russian, Arabia, Spanish, Turkish, Danish, Iranian, Greek, Israel, Hungary, Indonesian, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Slovenian, Swedish, Czech, Croatia, Thai...

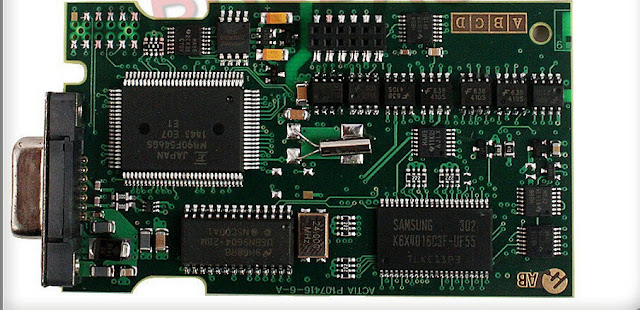

PSA Lexia3 Interface firmware version and chip:
How to check if the LEXIA 3 is original?

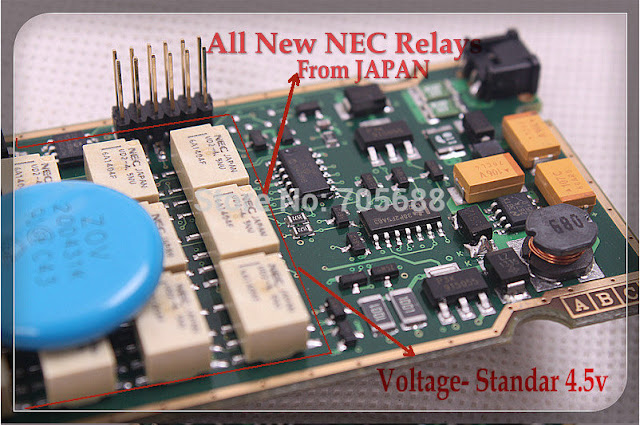

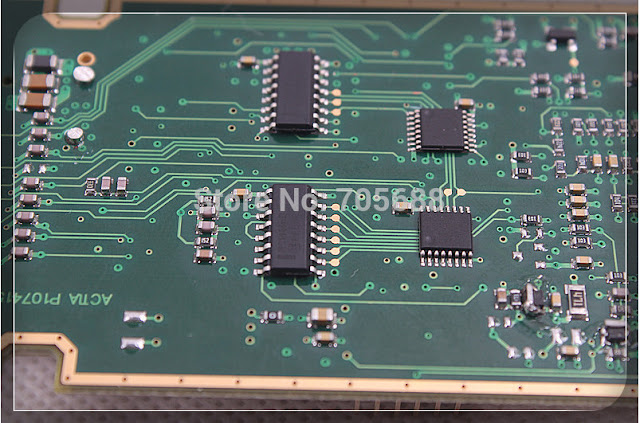

Lexia-3 PCB edge is golden. Double PCB

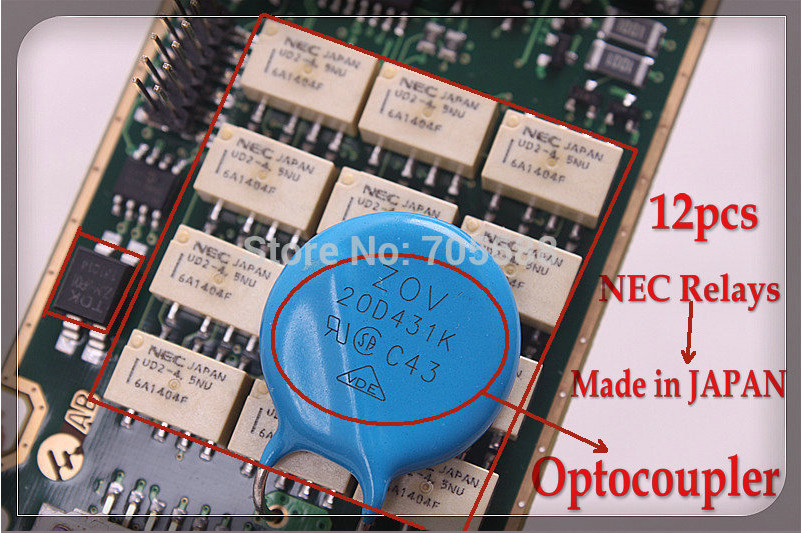

Lexia-3 replays are 12pcs, which are 4.5V, it is more stable.
Lexia3 PCB has 7pcs optocouplers , which are 100% original and new
2pcs Optocouplers on Lexia 3 PP2000
Firmware: Reference Serial 921815 C/
