(Tested) Lexia 3 PP2000 Diagbox for Peugeot and Citroen vehicle model coverage

Having been playing around lexia 3 diagnostic tool for PSA groups, I have tested successfully on lots of Citroens and Peugeots. Since there is no detail function and vehicle list on the webpage (as list where mine from), I should be first one.

My Lexia 3 PP2000 diagbox: €69.00 from obd tool site

LEXIA 3 V48 PP2000 V25 Package list:

1pc x Main unit with extension OBD2 cable

1pc x Long 9pin to USB cable

1pc x Short 9pin to USB cable

1pc x OBD2 cable

1pc x DVD

Software version:

Lexia 3 V48

PP2000 V25

Diagbox V5.75

Lexia 3 diagnostic tool function achieves:

1. Read/ Erase trouble codes

Display all stored and pending faults codes with full description, e.g “Rail pressure-too low pressure”

Program support report or copy to clipboard

2. Read identification

Displays full identification if ECU control units, e.g part number, software/hardware version

3. Auto scan

Detect all ECU control units in the car and read diagnostic faults codes

4. Actuator test / customize settings

Activates particular actuators, like lock/unlock wheel, lock/unlock door, enable fuel pump etc

5. Programming functions

Lexia 3 is able to access multi-system, like engine, transmission, brake, airbag, immobilizer, body to proceed configuration programming

6. Measured values

Display live data, like engine speed, battery voltage, oxygen sensor, coolant temper,

7. Customize settings

Activate cruise control, disable DRL (daytime running lights), disable TPMS lights etc.

Tested vehicle models with Lexia 3 PP2000 diagbox

Citroen:

1995 Citroen XM 2.5 TD Norway

1998 Citroen XantiaⅡ2.0 16V Russia

1998 Citroen XM 2.0 TurboCT Portugal

2001 Citroen C5 HDi Portugal

2001 Citroen C5 2.0 HPi V16 Netherland

2001 Citroen Saxo 1.1 Finland

2001 Citroen 2.0 HDi 90hp Belarus

2001 Citroen 2.2 HDi Poland

2002 Citroen Evasion 2.0HDi RHW Belarus

2003 Citroen C3 1.4 Auto UK

2003 Citroen Xsara Picasso 1.8 16V Netherland

2003 Citroen Xsara Picasso 1.8 16V SX Finland

2004 Citroen Xsara 1.6 V16 110hp Belarus

2007 Citroen C5 2.0 HDi Hungary

2008 Citroen C3 1.4 Finland

2009 Citroen C4 1.6 THP Greece

2010 Citroen C4 HDi Argentina

Peugeot Planet 2000 for Peugeot:

1997 Peugeot 406 1.8i XU7JP4 Belarus

1998 Peugeot 106 Electric Norway

1999 Peugeot 406 2.0 HDi 90hp Belarus

2001 Peugeot 206 XR 1.6 V8 Argentina

2001 Peugeot 406 2.0 HDi 110hp Belarus

2001 Peugeot 406 2.2 HDi Finland

2001 Peugeot 607 2.2 HDi Diesel Ireland

2002 Peugeot 206 Petrol Russia

2002 Peugeot 307 2.0HDi Finland

2002 Peugeot 406 1.8i EW7J4 Belarus

2003 Peugeot 406 2.0 HDi 110hp Belarus

2003 Peugeot 307 1.6 XS Petrol Malaysia

2004 Peugeot 307 1.6 HDi SXI 56 UK

2005 Peugeot 307 2.0 HDi SW 100Kw V16 Austria

2006 Peugeot 407 2.0 HDi UK

2007 Peugeot 207 1.6 V16 Argentina

2007 Peugeot 307 1.6 Hdi Finland

2010 Peugeot 307 1.6 V16 Argentina

ALL the test results are based on Lexia 3 V45, the latest V48 adds more model possibility, especially Peugeot 307. Because V45 works week on Pug 307 module.

Lexia-3 V48 PP2000 V25 Citroen/Peugeot Diagnostic Support Peugeot 307 Avec Diagbox V7.57:

http://www.eobdtool.co.uk/wholesale/best-quality-lexia-3citroen-peugeot-pp2000.html

This is from obd tool website technical support: (Tested) Lexia 3 PP2000 Diagbox for Peugeot and Citroen vehicle model coverage

DIY Program Peugeot new key with Lexia 3 Peugeot Planet 2000

Lexia 3 is the universal diagnostic interface for PSA Citroen and Peugeot. Here is a step-by-step Peugeot 307 new key programming instruction using lexia 3 XS-evolution PP2000 diagbox interface.

Equipment:

Lexia3 V48 PP2000 V25 diagnostic interface

A laptop running Win XP/Win 7 mode

Pin code

NOTE:

PIN Code is required during key programming procedure. Record your vehicle PIN code first. Free download Renault Pin code reader software:

http://xs-eovlution.blogspot.com/2015/07/free-download-renault-pin-code-reader.html

Instruction:

1.       Install and activate Lexia 3 PP2000 V25 diagnostic software

2.       Select vehicle model 307 and wait until the well communication built

3.       Check the entering vehicle information

4.       Select the application as Peugeot Plant 2000 and confirm it

5.       Select test by ECU

6.       Select Built-in systems interface

7.       The system is reading the ECU in progress, follow and accept the windows prompts.

8.       Select Learning option under Carry out the tests menu display

9. Select Programming of keys

10. The system will display key programming procedure when activation process is complete. Confirm to continue.

11. Confirm Unlocking the E.C.U program

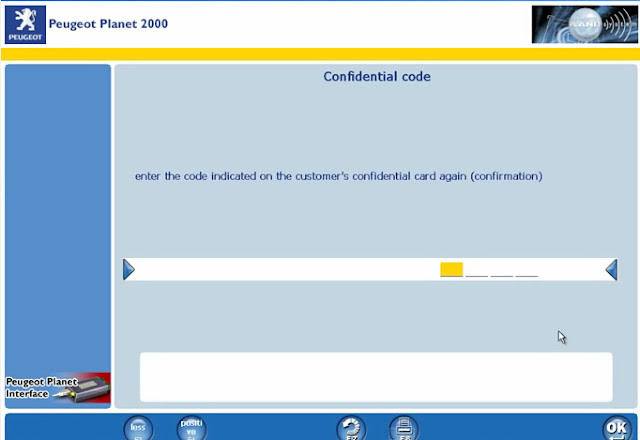

12. Manually enter the Confidential code (PIN Code)

13. The system is verifying the PIN code. If the code is correct, the built-in systems interface is ready for programming of keys.

14. Enter the key number to be learnt. The number of keys to be programmed cannot exceed 5.

15. Follow the screen prompt to switch off the ignition

16. Then switch ignition to ON within 15 s.

17. Key programmed, switch off the ignition and take out the key

18. Switch ignition ON again and insert the next key in the ignition. Repeat the key programming procedure to program another key. When complete programming, the system will display keys that are programmed.

19. Follow the screen instructions. Check the handbrake is on. For an automatic gearbox, check the gear level is in position “P”. For a manual gearbox, check that the gear level is in neutral

20. Follow the re-synchronies the HF remote controls procedure to operate until the “End of key programming procedure” notice displays. Exit the program.

This is from obd tool website technical support: DIY Program Peugeot new key with Lexia 3 Peugeot Planet 2000

Citroen Peugeot Lexia 3 PP2000 with 100% 921815C chip

Obd tools site (obdtool.co.uk) has extracted PSA Citroen and Peugeot Leixa 3 PP2000 XS Evolution Diagbox diagnostic interface with 100% original 921815C full chip that works perfectly on Peugeot 307, 407 and Citroen C5.

Software version:

Lexia-3 V48,

Peugeot Planet 2000 PP2000 V25,

Diagbox 7.57

Software languages:

English, Chinese, German, French, Japanese, Russian, Arabia, Spanish, Turkish, Danish, Iranian, Greek, Israel, Hungary, Indonesian, Italian, Dutch, Norwegian, Polish, Portuguese, Finnish, Slovenian, Swedish, Czech, Croatia, Thai...

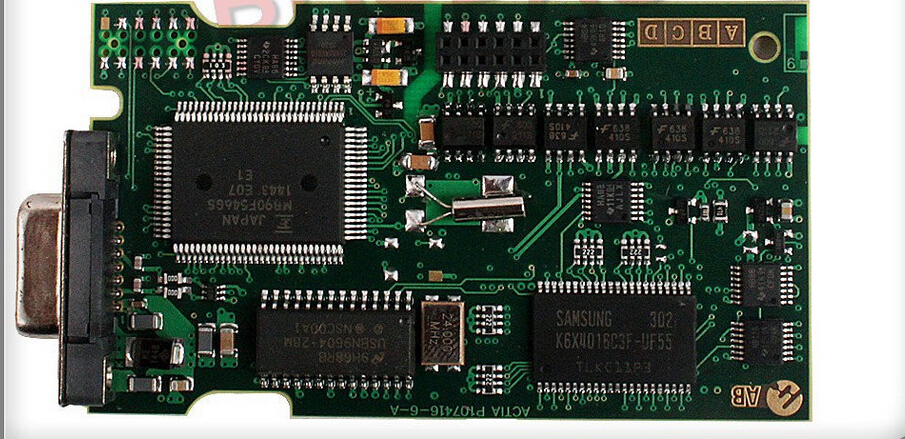

PSA Lexia3 Interface firmware version and chip:

How to check if the LEXIA 3 is original?

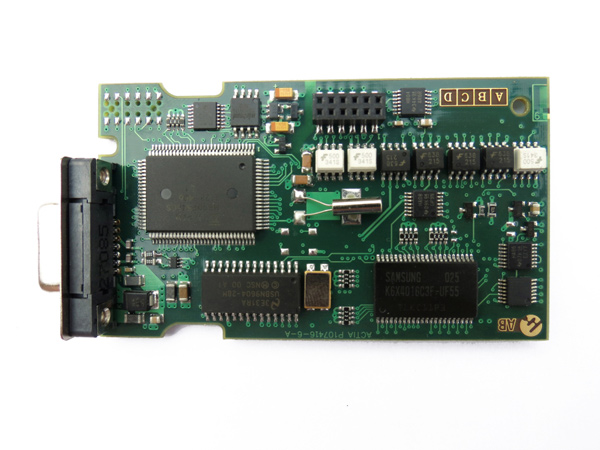

Lexia-3 PCB edge is golden. Double PCB

Lexia-3 replays are 12pcs, which are 4.5V, it is more stable.

Lexia3 PCB has 7pcs optocouplers , which are 100% original and new

2pcs Optocouplers on Lexia 3 PP2000

Firmware: Reference Serial 921815 C/

This is from obd tool website technical support: Citroen Peugeot Lexia 3 PP2000 with 100% 921815C chip

With diagbox V7.57 Series 921815C / Firmware Lexia 3 V48 PP2000 v25

To Lexia 3 PP2000 users,Obd tools website newly releases a new kind of best quality Lexia 3 PP2000 built-in original chip 921815C / firmware and can perform very well with Peugeot 307. The new lexia 3 pp2000 will demand those who want to get real picky and go for quality chips and check for NEC chips as in something like this:

http://www.eobdtool.co.uk/wholesale/best-quality-lexia-3citroen-peugeot-pp2000.html

obdtool.co.uk sells €75, and shipping cost depends on your destination.

This is newest Lexia-3 PP2000 package.

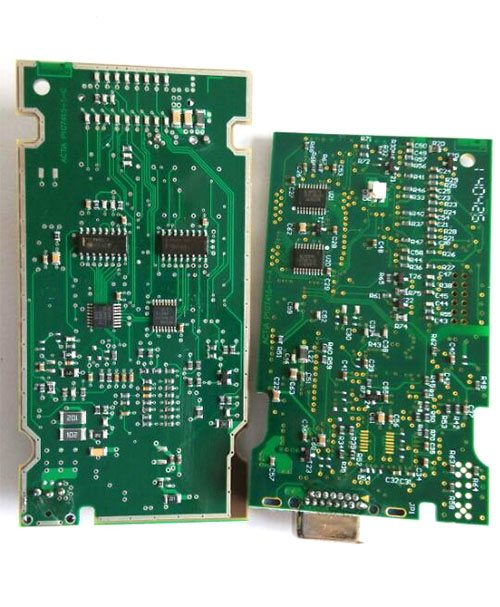

Two pieces of PCB board pictures with marked 921815C / firmware position to prove the best quality of Lexia 3 PP2000.

More detailed information on newest Lexia-3 PP2000

Firmware: 921815C /, best full chip

Software: V7 Date diagbox

Update: Once obdtoolshop.co.uk is available with newest software download link, you will be informed to download.

Besides, the newest one package is different from the older version as follows.

http://www.eobdtool.co.uk/wholesale/pp2000-lexia-3-citroen-peugeot-diagnostic-tool.html

This is from obd tool website technical support: With diagbox V7.57 Series 921815C / Firmware Lexia 3 V48 PP2000 v25

PP2000 fix Engine Management Light (EML) on for Peugeot 206

This post starts with Peugeot 406 problem that Engine Management Light (EML) on, then use Lexia 3 PP2000 Peugeot diagnostic tool to read out the fault code, according to the fault code description, the technician finally solved the problem.

Let’s go

Car model and year:

Peugeot 206 Bella, a 1.4 16V Sport in Moonstone Blue

Car problem:

EML is coming on, showing anti-pollution fault, it'll stay there for about 3 days and then disappear for about a week, then back on for 3 days.

Tool to use:

I use PP2000 Peugeot diagnostic tool to read out codes, I bought from obdtoolshop.co.uk

http://www.eobdtool.co.uk/wholesale/best-quality-lexia-3citroen-peugeot-pp2000.html

Fault code and description

P0170 - Fuel Trim Bank 1

P0011 - A Camshaft Position - Timing Over-Advanced or System Performance Bank 1
P0012 - A Camshaft Position - Timing Over-Advanced or System Performance Bank 1

Advice:

I think you should remove the vvt solenoid, easy enough to do and just give it a good clean and tell us what the condition is like before you clean it

Solved:

It was a faulty Pre-cat Lambda.
Fuel Trim Bank 1 = Pre-cat Lambda sensor

This is from obd tool website technical support:   PP2000 fix Engine Management Light (EML) on for Peugeot 206
