Foxwell GT80 Plus, Autel Maxidas DS708 and Maxisys 908P Comparison Table

This is a comparison table which lists the similarities and difference among Foxwell GT80 Plus, Autel Maxidas DS708 and Autel Maxisys 908P. Hope it helps when you are confused which one to own.

	Foxwell GT80 Plus	Autel DS708	Autel Maxisys 908P
Diagnostic System
CPU	Intel(R) Atom (TM) CPU Z3735F 1.33G Hz	ARM9+ARM7 dual processor	Samsung Exynos Quad-Core Processor 1.4GHz
OS	WINDOW 8.1 Pro	Windows CE	AndroidTM 4.0, Ice Cream Sandwich
Memory	2GB RAM	Max. 4 Gigabyte SD card	2GB RAM & 32GB On-board Memory
SSD hard drive	32GB	Null	32GB
Display:	Backlit 1280*800 pixel 10.1"  LED capacitive touch screen	Backlit, 7" TFT (800*480 dpi) color display with touchscreen	9.7 inch LED capacitive touch screen with 1024x768P resolution
Connectivity	USB 2.0 Bluetooth 4.0	Wi-Fi, USB 2.0, Ethernet	Ethernet: RJ45 Ethernet Connection,Cellular: 3G/4G module: WCDMA
WIFI	Built-in WIFI 802.11 b/g Wireless LAN	Dual Band 802.11n Wi-fi (2.4GHz)	Dual Band 802.11n Wi-fi (2.4GHz & 5GHz)
Battery	7000 mAh, Lithium-polymer batter. Chargeable via 12V AC/DC power supply. 8-18 Volts powered by vehicle battery	8.0-32.0V power provided via vehicle battery	11000 mAh 3.7 V lithium-polymer battery, Charging via 12 V vehicle power
Weight (Display)	NW:1.55KG GW:8.65KG	2.95lb(1.1kg)	NW: 1.42 kg (3.13 lb), MaxiSys GW: 8.655 kg (19.08 lb) / MaxiSys Pro GW: 8.052 kg (17.75 lb)
Camera	2 megapixels front –facing and rear-facing	No support	Rear-facing, 5.0 Mexgapixel, AF with Flashlight
AutoVIN Technology	Yes	Not support	Yes
Protocols	ISO9141-2, ISO14230-2, ISO15765-4, K/L lines, Double K Line SAE-J1850 VPW, SAE-J1850PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Single wire CAN, KW81, KW82, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1939, SAE J1708, Fault-Tolerant CAN.	ISO 9141-2, K/L lins, flashing code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898 ISO15765-4, Highspeed, Middlespeed, Lowspeed and Singlewire CAN
Language Available	English as default, after receive please contact us to customize your favorite language.	English, French, German, Spanish, Portuguese, Japanese, Russian	English, French, German, Portuguese, Polish, Italian, Swedish, Spanish
Update	Free update for 18 months, after 18 months, pay 500USD at official site to update.	Update on Autel official website one year for free(After One Year, USA and Canada Customer Update Service 695usd/Year, Other Areas Update Service 500usd/Year))	Update online free in one year, after one year,1295 USD for one year update
Function	Basic diagnostic function	Live Data, Sensor Initializations, ECU Coding (Minimum)& Module Set Up Functionality	codes, live data, actuation tests, adaptations, coding, and even ECU programming
Special function	EPB Service, Oil Light Reset, DPF Reset, SAS(Steering Angle Sensor Calibration), TPS/TBA(Throttle Body Alignment)		(Advanced)ECU coding, ECU Flash programming.
Vehicle coverage	cover more than 40 domestic, Asian and European vehicle makes	cover more than 40 domestic, Asian and European vehicle makes	cover more than 40 domestic, Asian and European vehicle makes

Foxwell GT80 Plus is not such famous as Autel Maxidas DS708 and Autel Maxisys 908P, to help more people know Foxwell GT80 Plus, let’s go on read following parts on Foxwell GT80 Plus details.

Foxwell GT80 Plus highlights:

• Big display: With 10 inch LED big touch screen
• Based on Windows 8.1 operation system: work stably and run faster, install APP is allowed, and you are allowed to add as more memory as you can.
• Can work with the newest car models up to 2015/2016 year from worldwide, the compatible vehicle coverage is different from one vehicle to another one.
• Can access to a vast range of controllers (ABS, airbags, instrument cluster, etc.) and support diagnostic function.
• Built in special function e.g program key, EPB Service, Oil Light Reset, DPF Reset, SAS(Steering Angle Sensor Calibration), TPS/TBA(Throttle Body Alignment) etc.
• Built in record function and can store and playback the test data, then send us via network connection.

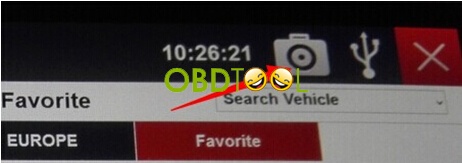

• The built in record icon is used to record the operation process, and use to collect data.

8.)  With external Oscilloscope, endoscopes, multimeter

9.) Able to project data

• Cover 59 kinds of vehicles from USA, Asia, China, Europe and more vehicle models will be added.

American vehicle coverage: Chrysler,Ford,GM,Brazilian GM(For Brazilian Market Only)

Asian vehicle coverage:

Au Ford (For Australian Market Only), Acura, Brilliance, BYD, Chery, Daewoo, Geely, Great Wall, Honda, Holden (For Australian Market Only), Hyundai, Infiniti,

Isuzu, JAC, Kia, Lexus, Mazda, Mitsubishi, Nissan, Perodua, Proton, Scion, Subaru, Suzuki, Toyota

European vehicle coverage:

Audi, Bentley, BMW, Bugatti, EU Ford, Jaguar, Land Rover, Maybach, Mercedes Benz, Mini, Opel, Porsche, Rolls-Royce, Saab, Seat, Skoda, Smart, Sprinter, Vauxhall, Volvo, VW

Favorite vehicle coverage:

barth, Alfa-Romeo, Citroen, Dacia, Fiat, Lancia, Maserati, Peugeot, Renault

MB EIS Test Platform connection diagram for different Mercedes

This post list the figures which show MB EIS Test Platform connectoion for all of compatible Mercedes Benz models including W164 W221 connection, W210 W208 W202 connection, W209 W211 W169 connection, W639 W203 connection and W204 w207 connection.

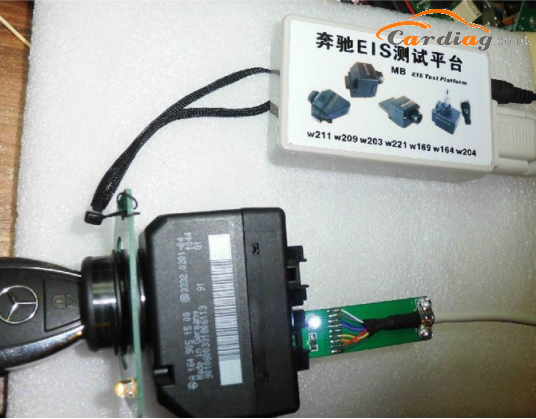

Figure one: W164 W221 connection

W210 W208 W202 connection

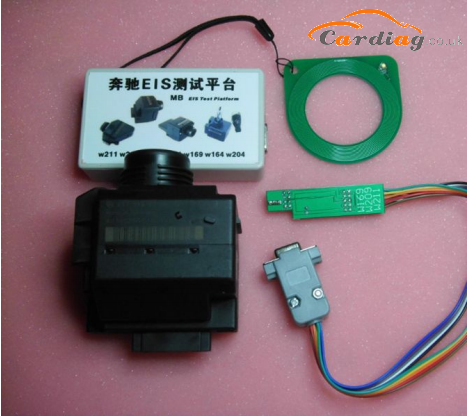

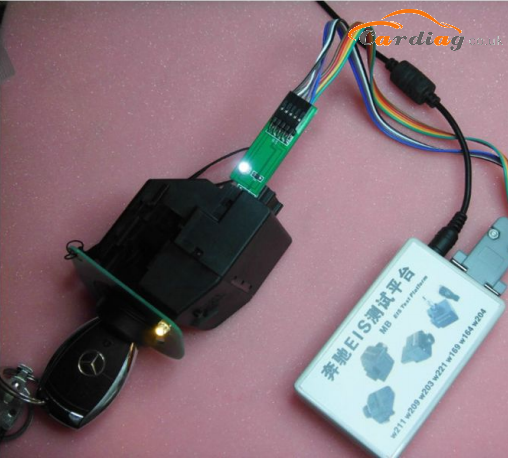

W209 W211 W169 connection

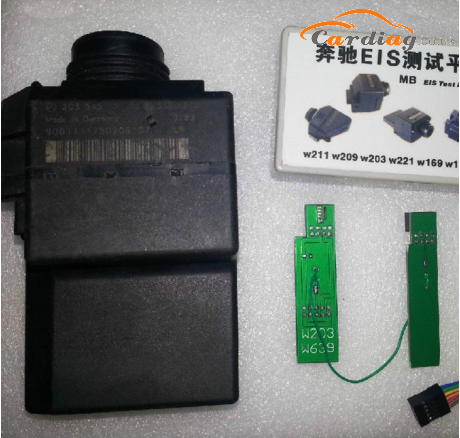

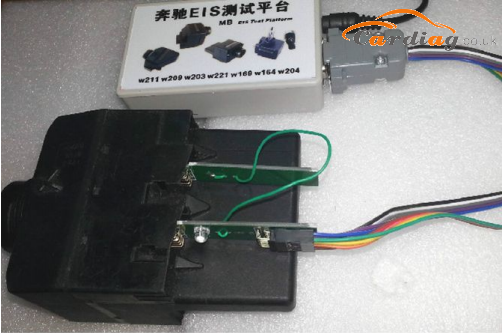

W639 W203 connection

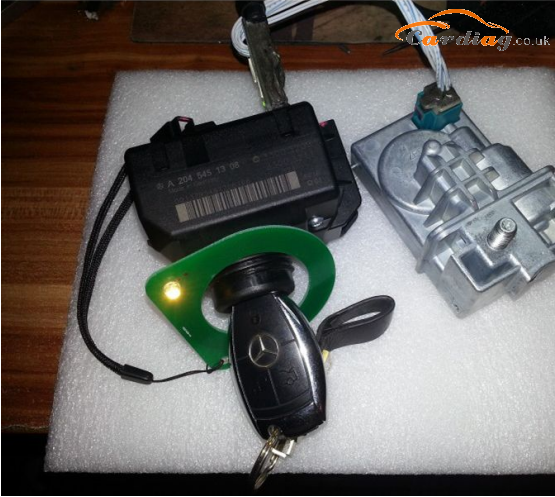

W204 w207 connection:  this one need to connect with car's ESL for test
