obdtool in ukCarProg ECU Tool Opel Hybrid ECU programmer
Opel Hybrid ECU programmer (carprog v8.21 and v9.31 online):
OPEL login reader from motor hybrid ECU. Works by OBDII connector using cable
A1, or removed from car using cable A15. On-table connection wiring diagram you
can find in user manual.
This CarProg Opel ECU reader you can use in these cases:
• use it like Opel security code reader by OBDII for transponder key
programming. In this case you don't need call dealer for get security code or
remove immobilizer to read it manually. For key programming use any key
learning tool - TECH 2, AD100 OP-COM or any other;
• use it for used motor ECU repair, reset Engine Control Module and
programming. ECU security code is necessary to set back the Engine Control
Module to its factory default state. Prior to replace, you have to reset it back to
its factory default state. In this way, you can install it into another car. With
TECH2 or other equipment you can do this work, but always you need used
motor ECU security code (you can read it with CarProg) and car immobiliser
security code (remove immobiliser and use TMS370 programmer to read it).
Each factory default state Engine ECU has some limited running time, without
immobiliser (max 10 attempts);
Supported cars:

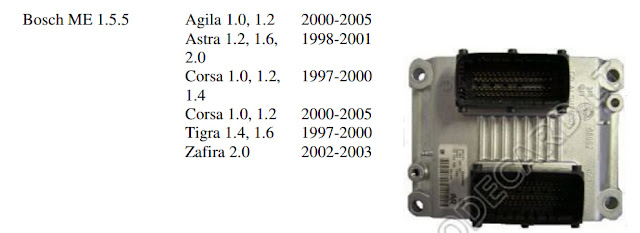

Bosch ME 1.5.5
Agila 1.0, 1.2 2000-2005
Astra 1.2, 1.6, 1998-2001
2.0
Corsa 1.0, 1.2, 1997-2000
1.4
Corsa 1.0, 1.2 2000-2005
Tigra 1.4, 1.6 1997-2000
Zafira 2.0 2002-2003
See pictures:

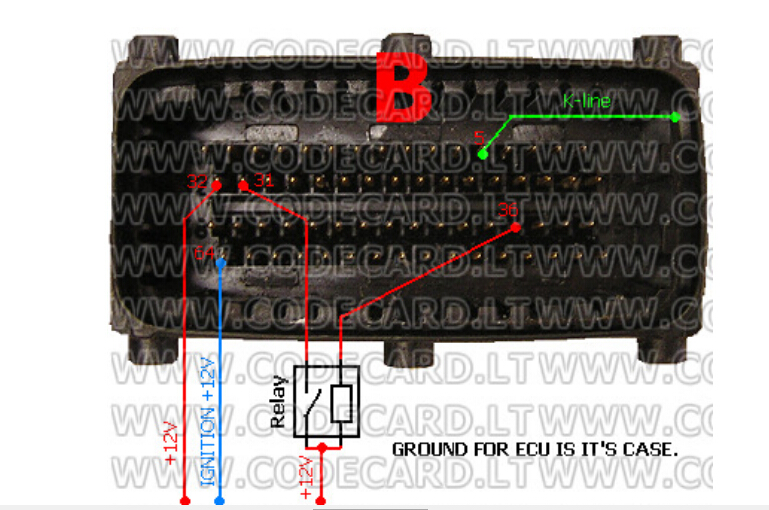

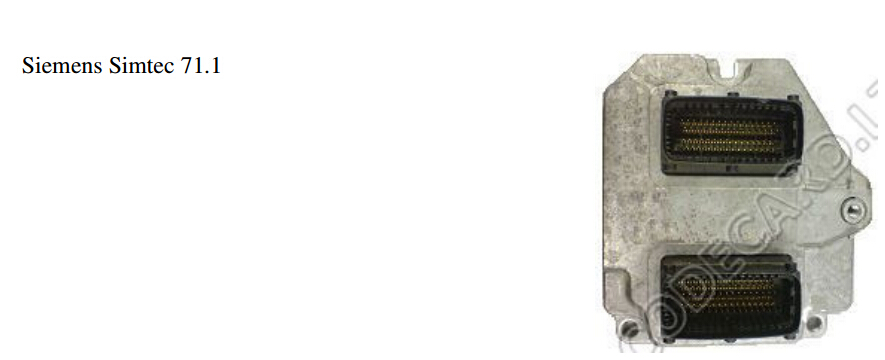

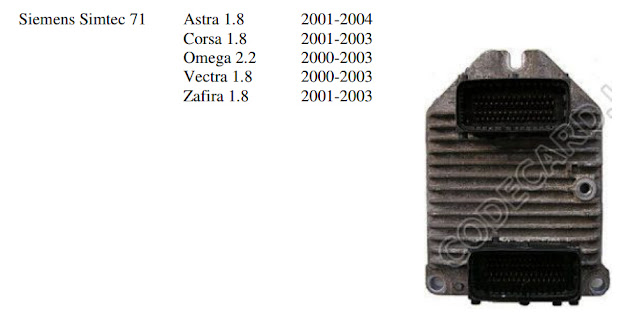

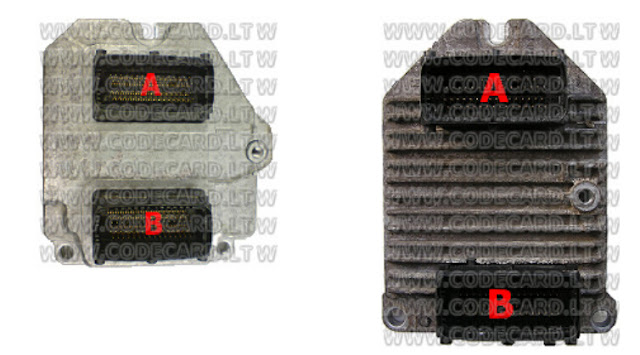

1. SIMTEC 71 and SIMTEC 71.1 ECU connection on-table diagram:

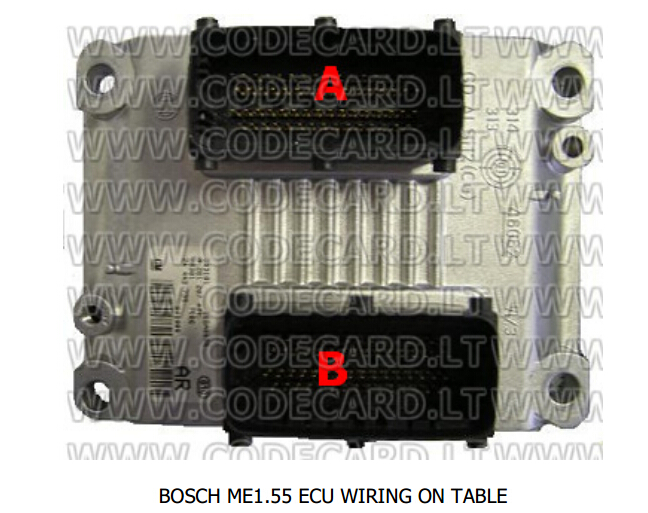

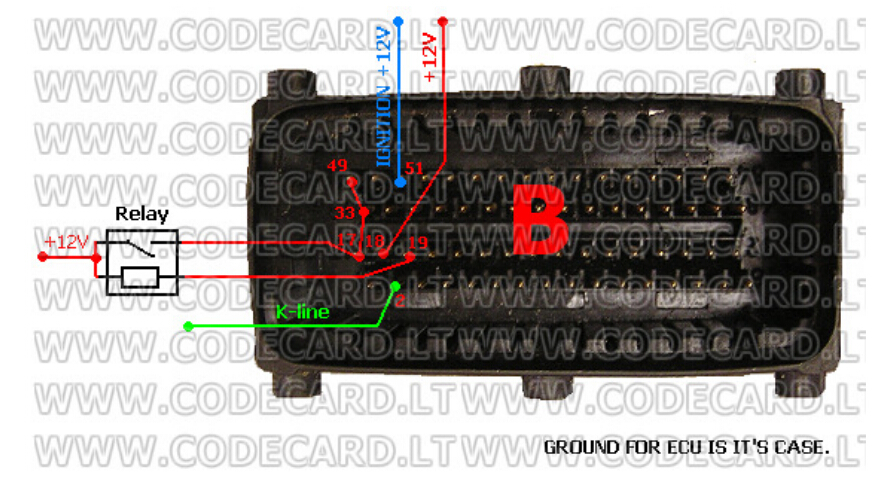

2. BOSCH ME1.55 ECU connection on-table diagram:

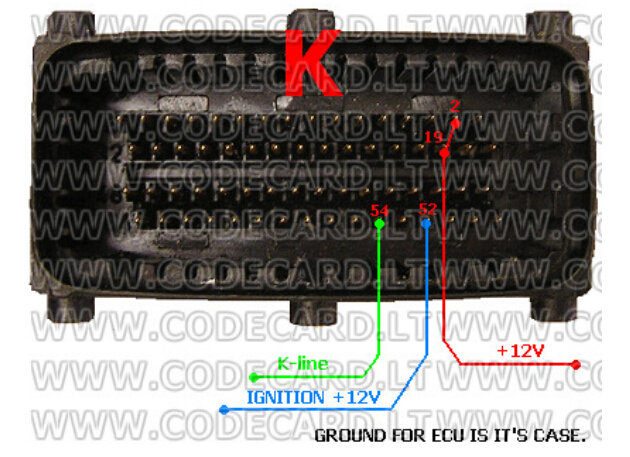

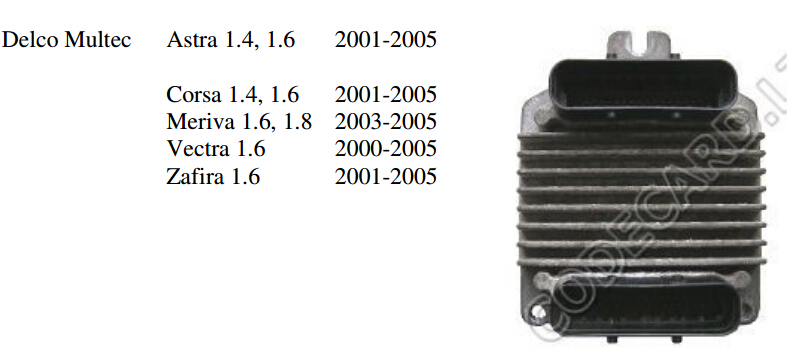

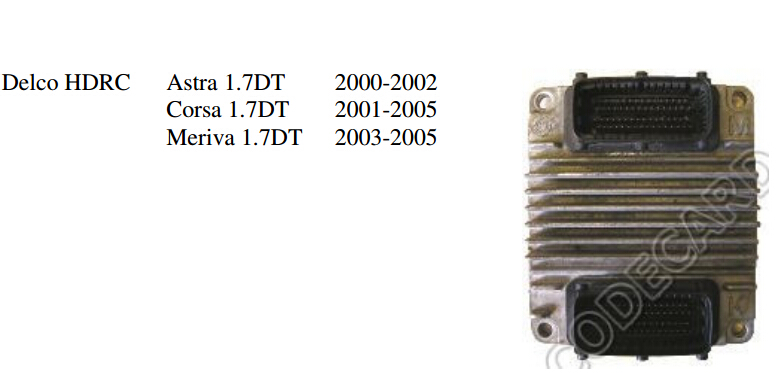

3. DELCO PETROL HSFI 2.x and DIESEL 1.7DT ECU connection on-table
diagram:

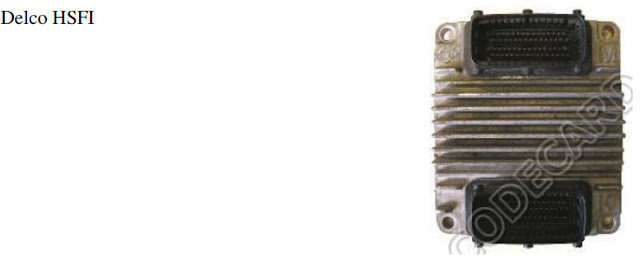

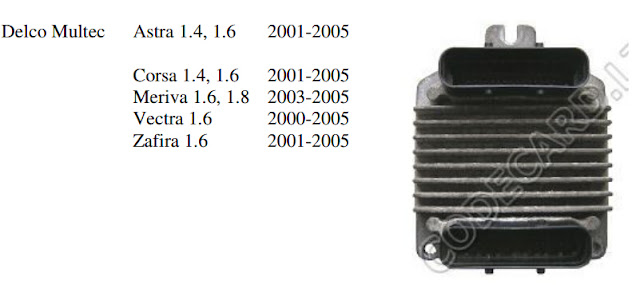

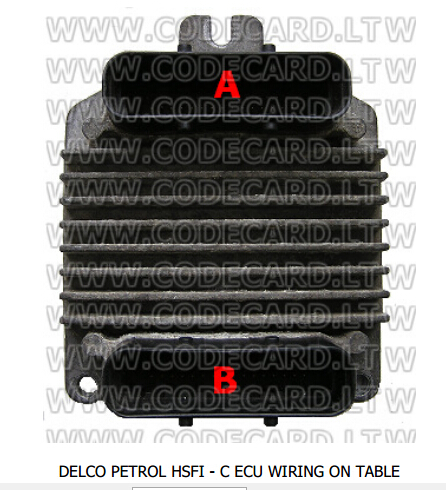

4. DELCO PETROL HSFI - C ECU
This is from EOBDTOOL website technical support: CarProg ECU Tool Opel Hybrid ECU programmer
Free download Honda HIM HDS v3.101.015 diagnostic software
ODIS V3.0.1 is tested ok on VAS 5054A Plus diagnostic interface
ODIS V3.0.1 is newly released and tested ok on VAS 5054A Plus diagnostic interface. This VAS 5054A Plus ODIS V3.0.1 with OKI chip and original Bluetooth AMB 2300 V4.0 can support UDS protocol.
VAS 5054A Plus share the same function with VAS 5054A which is well-known as a designated universal diagnostic tool for VW group vehicles: VW, AUDI, SKODA, SEAT, Bentley and Lamborghini.
VAS 5054A Plus can connect with computer by USB or Bluetooth ( Bluetooth Connection Password: 082145725) The range of Bluetooth connection is 2 to 5 meters, depending on the environment and the type of Bluetooth adapter used on the PC side.
VAS 5054A Plus ODIS V3.0.1 supported languages:
English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
VAS 5054A Plus supported protocols:
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)
UDS Protocol
PWM Protocol
Computer requirements ODIS V3.0.1 tested on VAS 5054A Plus:
Windows System Language: American English
Windows 7 32 bit
System C disk have to be NTFS format
Local C disk need to have at least 40GB space for installing ODIS V3.0.1
How to Install VAS 5054A Plus ODIS V3.0.1 on Windows 7?
(Same Video guide as VAS 5054A)

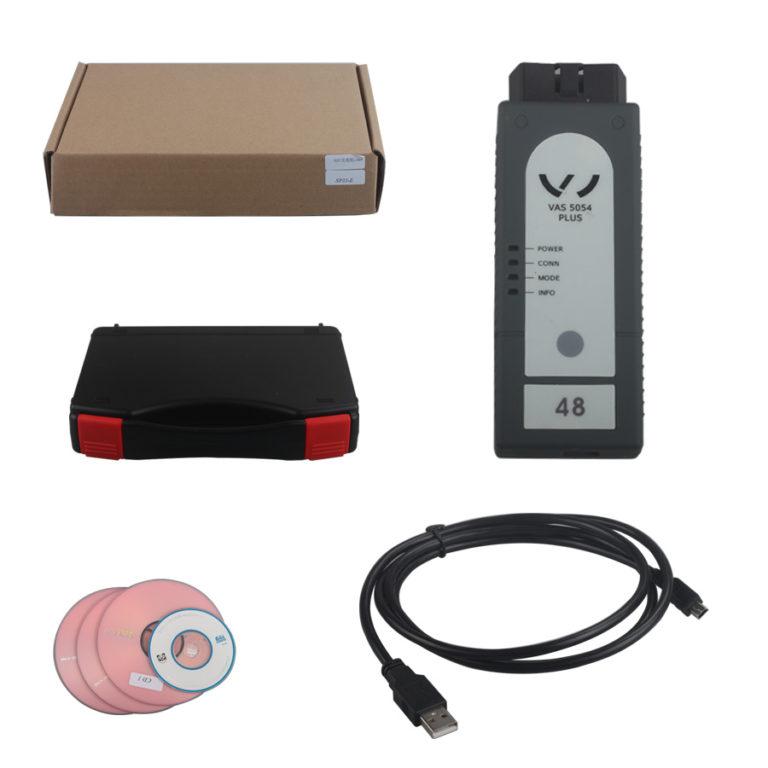

More information about VAS 5054A Plus you can check:

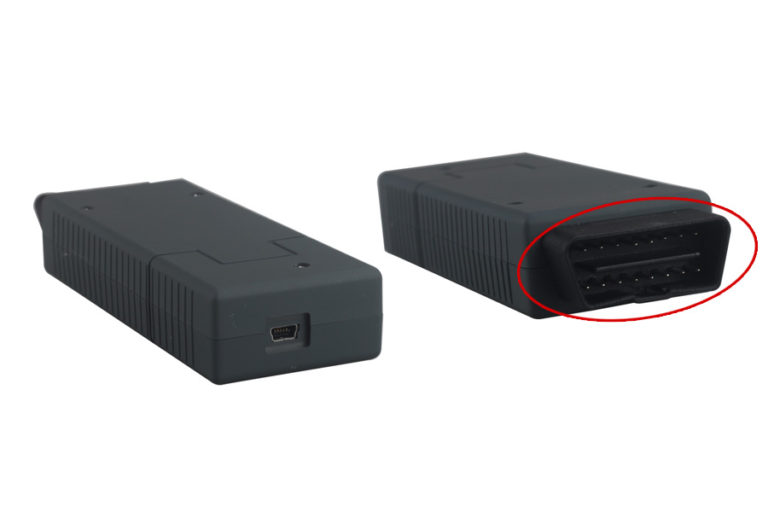

VAS 5054A Plus port:

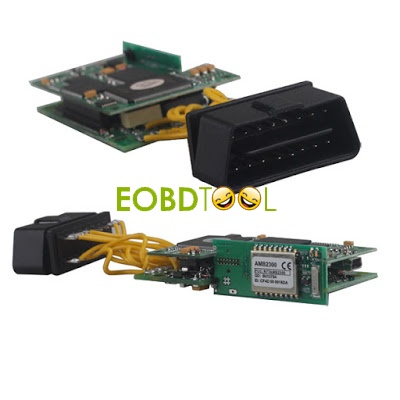

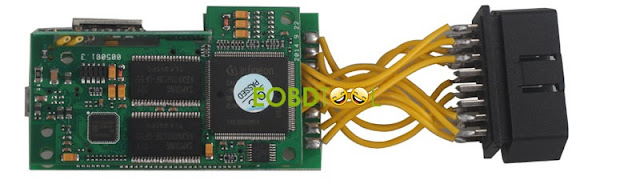

VAS 5054A Plus ODIS V3.0.1 PCB with port:

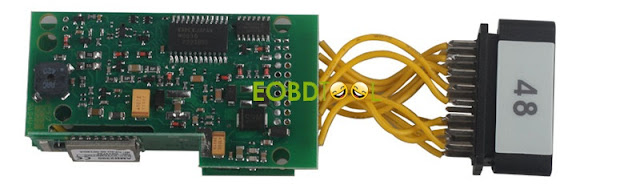

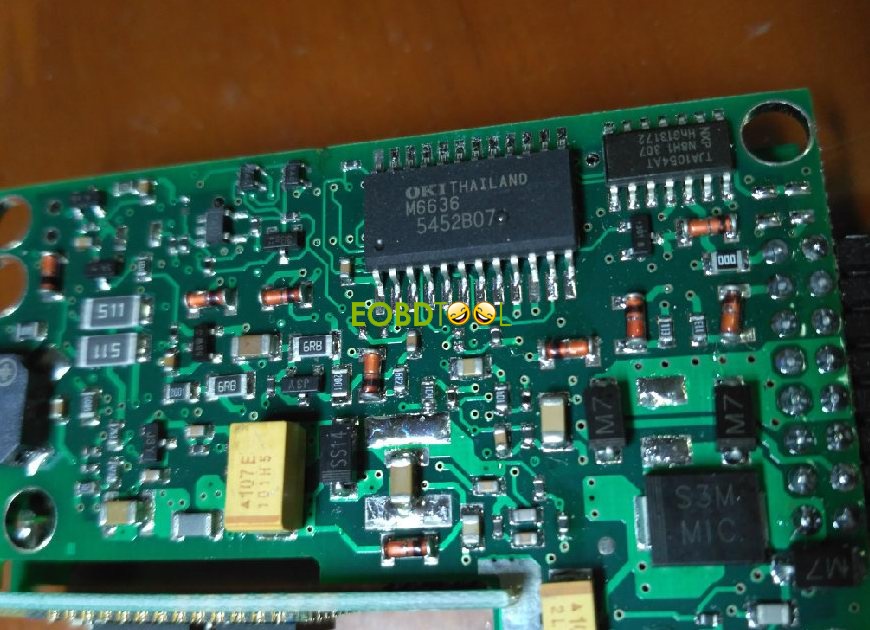

VAS 5054A Plus OKI chip PCB look:

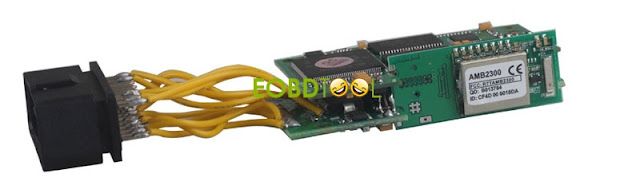

VAS 5054A Plus original Bluetooth AMB 2300 V4.0:
This is from EOBDTOOL website technical support: ODIS V3.0.1 is tested ok on VAS 5054A Plus diagnostic interface
Should i buy 2016 Xprog-m Xprog box v5.6 firmware v3.2?
It has been a puzzle for many users since Xprog-m v5.6.0 was released recently at eobdtool.co.uk. Here is all info eobdtool offers about the newest Xprog-m Xprog box sw: v5.6 fw: v3.2, including the basic info, new features, and authorizations. Best regards!

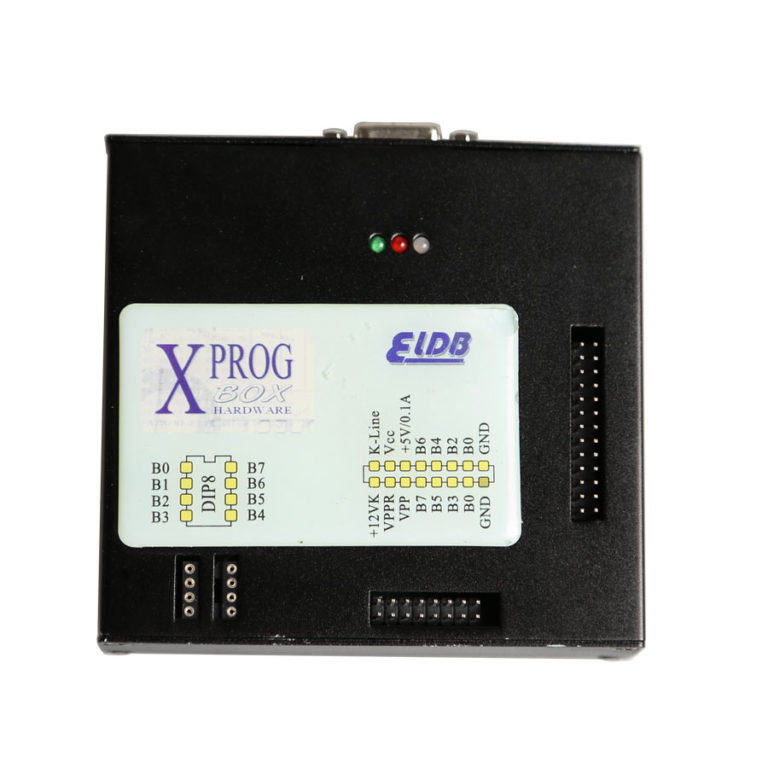

Xprog box info:
Software version: v5.6.0 English
Hardware version: xprog box v3.2
Xprog-m v5.6 upate news:

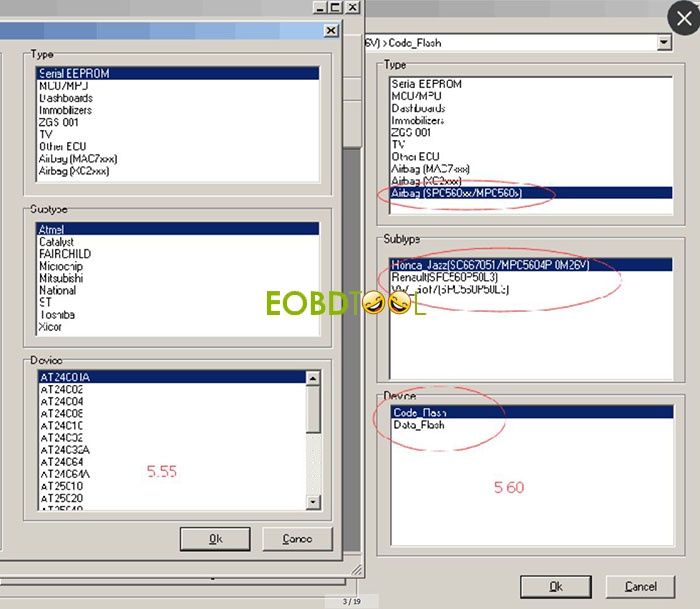

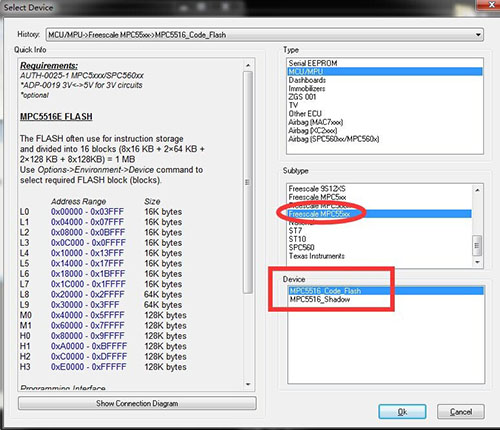

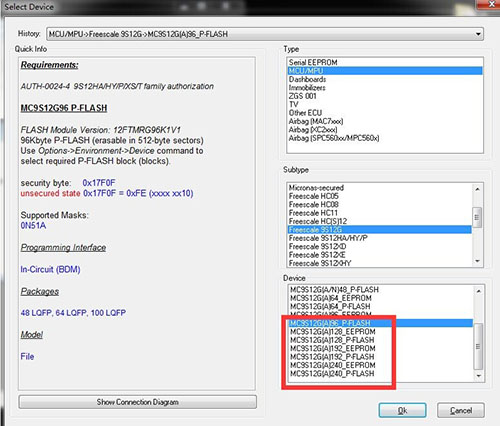

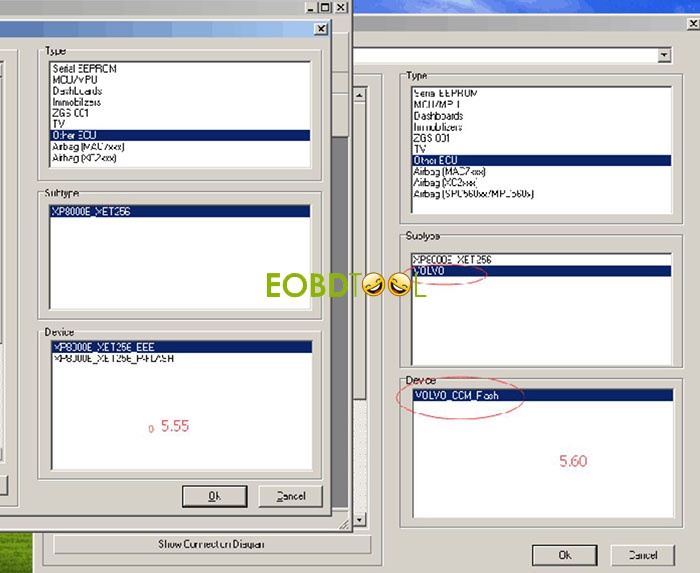

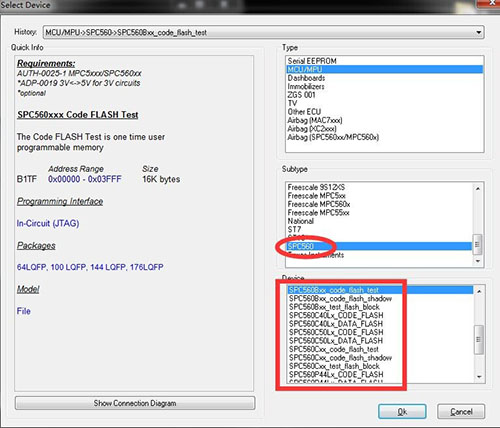

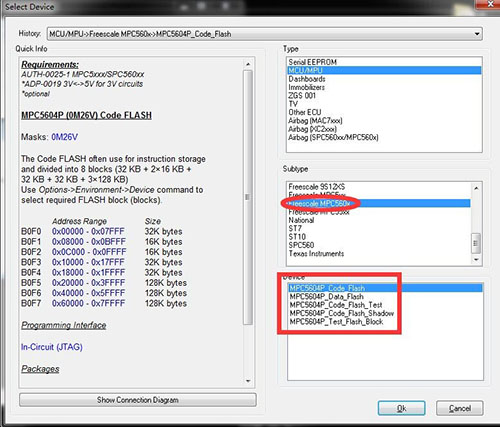

New chips are added to XPROG M BOX v5.60

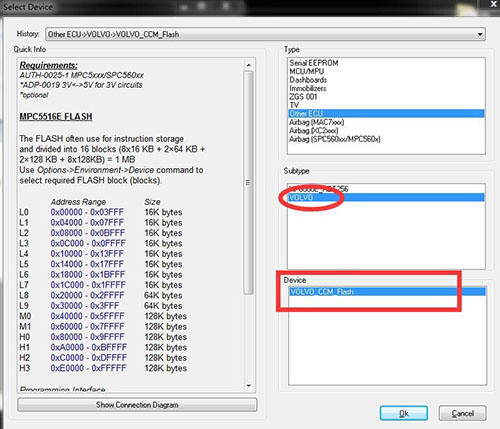

More functions in XPORG box 5.6.0
XPROG-M V5.60 Authorizations:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx(New added)
AUTH-0023-2 XC23xx(New added)
AUTH-0024-1 MC9S12Cxx(New added)
AUTH-0024-2 MC9S12XE(New added)
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx (newly added)
This is from EOBDTOOL website technical support: Should i buy 2016 Xprog-m Xprog box v5.6 firmware v3.2?
Choose which one to adjust odometer OBDSTAR F100, X100 Pro, X300M, X300 Pro3
Hi, I am Jerry. My car is Mazda CX5. Hope this writing can help you to choose right tool. Two months ago I was confused about which tool should I buy. I wanted to adjust odometer and correct mileage, so I did a detailed research online and was suggested to use: OBDSTAR F100, X100 Pro, X300M or X300 Pro3. Finally I bought OBDSTAR F100. I thought the price is reasonable. I used it to adjust odometer OK and took this picture. It can match smart key to my Mazda CX5 also. Following is all info I collect and want to share with you.
Finally I bought OBDSTAR F100, I used it adjust odometer OK and took this picture.
So choose which one on earth?
I made some comparison among OBDSTAR X300 Pro3/ X300M/ F100/X100 Pro.
Round 1: Main Function and Price of OBDSTAR F100/ X100 Pro X300M/ X300 Pro3
(I recommend you to buy original, these four tools are all original and you can update free for one year at official website)
OBDSTAR F100 €152.99/ $166.76
Most powerful Mazda/Ford Key Programmer support all key lost, Odometer Adjustment, key learning. No Need Pin Code.
Can do odometer adjustment for Ford/ Mazda/ Land Rover/ Jaguar
Support the latest version of Mazda CX-3, CX-5, Mazda 2/3/6
OBDSTAR X100 Pro €208.00/ $226.72
Professional handheld key programmer, support programming and synchronizing on keys, smart keys, engine ECUs, Immobilizers for most vehicles in the markets, also support mileage correction on some cars.
OBDSTAR X300M €225.00/ $245.25
Only for odometer adjustment
Professional and universal mileage correction tool can do odometer adjustment for all cars via OBD directly.
OBDSTAR X300 PRO3 Key Master €479.00/ $522.11
Immobilizer + Odometer Adjustment +EEPROM/PIC+OBDII
Supports odometer correction for part of Mazda/Ford/Jaguar and Land Rover via OBD
It covers all function of OBDSTAR F100.
Round 2: Model Test results of OBDSTAR F100/ X100 Pro X300M/ X300 Pro3
I got most of following test results from forum and the shop website I bought OBDSTAR F100, if want more info you can check following links by yourself:
OBDSTAR F100 support car models:
Mazda
M2, M3 (Axela), M5, M6 (Atenza), CX5, CX7, CX9,
Ford
C-MAX 2012, Ecosport, Edge2015, Expedition2007-2010, Explorer2007-2010, Focus2008 2009 2013, Fiesta2013-, Kuga2010 2012, Mondeo2007-2013, New Mondeo, Navigator2007-2010, S-MAX2007-2010, Taurus 2015-
Land Rover
Discovery, Evoque2011-, Freelander2 2013, Range Rover2010-, Range Rover Sport 2014
Jaguar
F Series, XE Series2015, XJ Series2010
OBDSTAR X-100 Pro support car models:
Volkswagen Tiguan 2013 TFT color dash NEC+ 24C64 ok
Heavy Cruze 2011 by OBD perfect in 2 min
Ford focus 2008, do fine
Opel Isignia 2011 works well via OBD
Range Rover Evoque 2013 via OBD ok
Honda Civic 2002 Europe version add key ok
VW golf 6 2009 OBD ok
FIAT Punto 2003 OBD ok
KIA Sportage 2012 OBD ok
Kia Sportage 2015 with D70F3423 works perfect
Kia Sportage 2014 with 24C16 works perfect
Audi Q5 facelift 2013, 3.0 Quattro via OBD ok (25min)
Audi SQ5 2013 via OBD ok
Opel Astra J 2010 2011 pull pin by OBD ok
Opel Meriva, Opel Astra G
Insignia 2009 2010 2011 ok
Hyundai I20 Elite via OBD ok
Hyundai Creata via OBD ok
Chevrolet Captiva via OBD ok
Chevrolet Cruze 2010, 2011, 2012 via OBD Ok
Ford Eecosport via OBD ok
Ford fiesta 2012 via OBD ok
Hyundai Verna Fludic Diesel and petrol 24c16 via OBD ok
Jeep Compass 2014 for obd2 2008+
OBDSTAR X300M support car models:
Hyundai Accent 2011by OBD in 2 seconds
Focus 2013 OK
Fiesta 2012 OK
Grand Punto 2010 OK
Punto 2007 OK
Grand Cherokee 2013 OK
Astra j 2010 2011 2012 NOT OK
Fiat Fiorino via OBD ok
Audi A4 2007 in 20 seconds by OBD.
Jetta 2013mono display ok.
Chevrolet CRUZE 2012, Read security code ok and Mileage ok
Cruze 13 miles ok
Volkswagen Amarok 2014 ok (choose golf NEC 24C64 white meter 2013-)
Porsche Cayenne 2012 mileage OK
Skoda Octavia 2010 NEC+24c32 VDO mileage OK
Skoda Superb 2012 via OBD mileage ok
Polo 2004 VDO k Line mileage OK
Mazda 6-2015 via OBD -ok
Mazda 3-204-2015 OBD-ok
Octavia 2012-nec24c64-ok
2010 Cadillac escalade OBD via OBD – ok
FIAT qubo/fiorino OBD ok
Audi a4l 2012 by OBD ok
KIA Sportage 2014 + with D70F3536 (no external EEPROM) ok
KIA Optima 2014 + with D70F3536 (no external EEPROM) ok
KIA Sorento 2014+ with D70F3523 (no external EEPROM) ok
Hyundai I20 2015+ with D70F35xx (no external EEPROM) ok
Hyundai Genesis 2015+ with D70F3523 (no external EEPROM) ok
Hyundai accent 24c16 OBD not ok but choose AZERA D70F3423 and read km write ok and did same with RIO but choose KIA ceed D70F3423
2012 JettaNEC+24c64 black/white display-20 sec ok
Ford Ecosport 2014 1 min by OBD ok, It's like new fiesta same cluster Ecosport
Citroen Nemo 2008 - OK
Fiat Fiorino 2010 - OK
Fiat Fiorino 2012 - OK
VW T5 2011 - OK
Chevrolet Cruze 2010 - OK
Chevrolet Cruze 2011 - OK
Dodge Durango 2007 (as Chrysler RAM 2006-2008) - OK
Hyundai Accent 2011 - OK
Hyundai Accent 2012 - OK
Opel Insignia 2010 - OK
Peugeot Bipper 2012 – OK
Mazda cx-9 2008 ok
OBDSTAR X300 PRO3 Key Master support car models:
For VAG group vehicles:
Audi A3 is on the list from 2003 - 2006, 2007- up personally I have not tried
Audi A3 2008 OK
Audi normal a6 before 2009
Volkswagen Tiguan 2013 TFT color dash NEC+24C64 ok
Volkswagen caddy 2014 white meter NEC24C64 via OBD
Volkswagen Caddy 2014 with TFT Color dash via OBD
Volkswagen Caddy 2014 with TFT Color dash via OBD
Seat Ibiza 2014 via OBD ok
Volkswagen Polo 2014 with NEC24C64
06 a8 OK
2013 golf with black/white screen - OK (with latest update)
Golf 6 2012 ok
Q5 2013 via OBD ok
Tiguan 2012 tft color NEC24C64 ok
Volkswagen Polo 2014 White Meter NEC24C64 using golf menu OK
Passat 2009 mileage NEC+24c32 OK
KIA Sportage r 2014 d70f423 mileage tested ok
Can support VW micro nas
Skoda Octavia 2010 NEC+24c32 VDO mileage OK
Skoda Superb 2012 via OBD mileage ok
Polo 2004 VDO k Line mileage OK
Audi A4 2007 in 20 seconds by OBD.
Volkswagen Amarok 2014 OK (golf NEC 24C64 white meter 2013)
Jetta 2013mono display ok.
2) For Hyundai
Hyundai Verna fluidic OBD ok
Hyundai accent 2012 24c16 by OBD ok
Hyundai Creta D70F3525 ok
Hyundai Verna 24c16 ok
I20 2015 TESTED.VERY GOOOD.
Hyundai Accent 2011 by OBD in 2 seconds
3) KIA
Kia Sportage with 24c16 2012 work perfect
Kia Sportage 2013 round dash screen OBD success
Kia Sorrento 24c16 via OBD ok
Kia optima mileage correction: ok
Kia Sorento um 2016 ok OBD2
4) Opel
Opel Isignia 2011 works well via OBD
Astra J 2010 ok
Astra J 2011 read Security Code ok (via gm Cruze)
Opel Insignia 2009/2011 OK
Opel Zafira 2012 OK
Opel Astra 2010 2011 2012 NOT OK
5) Chevrolet
Chevrolet Cruze 2010, 2011, 2012 via OBD Ok
Chevrolet Cruze 2014 via OBD taking less than 4 seconds
Chevrolet Cruze 2012 mileage correction ok
Chevrolet CRUZE 2012, Read security code ok and Mileage ok
Chevrolet Cruze 13 miles ok
Chevrolet Captiva 2012, 2013 ok
6) Range Rover
Range Rover Evoque 2013 via OBD ok
Range Rover Evoque SD4 2013OK less than 2 seconds
Evoque 2012 works OBD
Land rover sport 2014 all ok
7) Ford
Ford Tourneo 2015 H9S12EXQ384
Focus 2013 OK
Ford fiesta 2012 OK
8) Fiat
Fiat grand Punto 2010 OK
Fiat Punto 2007 OK
Fiat fiorino OBD ok
9) Others
New update mileage correction for Hyundai Sonata 9
Benz yes BMW no
Honda civic 2006 all keys lost OK
Porsche Cayenne 2012 mileage OK
Jeep grand Cherokee 2013 OK
Jeep compass 2014 for OBD2 2008+
2006 Chrysler 300c -> will do dash via OBD but won’t do SRI
Hummer H2 2008 via OBD ok
2014 Altima via OBD ok
This is from www.eobdtool.co.uk website technical support:Choose which one to adjust odometer OBDSTAR F100, X100 Pro, X300M, X300 Pro3
