How to reset VW service reminder with vas 5054a ODIS

VAS 5054a ODIS V2.02 VAG diagnostic tool can let users to realize lots of customize to set possibilities for Volkswagen Group (VW, Audi, Skoda, Seat, Bentley and Lamborghini).

Obdtool.co.uk here takes an example of resetting VW service internal reminder light.

Tool needs:

VAS 5054A ODIS V2.0/V2.02 USB + Bluetooth VAG OBDII diagnostic tool

NOTE: ODIS V2.0 support multi-language, but ODIS V2.02 supports English ONLY

Instructions:

Install VAS 5054A ODIS V2.0 diagnostic software

Connect vas 5054a OBDII tool directly or via Bluetooth wireless connection (password: 082145725)

Click “Start diagnosis” link on the main ODIS program to access Guided Function

Select “SCH-17” control module and click “Identify control unit” to activate the control module

Select “Guided Functions” on the list

Select “Service Internal display, resetting” on the prompt box, click “Execute” button.

Follow the system prompts until view the Reset service data, click “Done/Continue” button.

The service internal warning indicator has been successfully disabled.

Exit the ODIS V2.0 diagnostic software program.

This is from obd tool website technical support: How to reset VW service reminder with vas 5054a ODIS

Auto Diagnostic Tools VAS 5054A

obdtoolshop دوشنبه 18 آبان 1394 ساعت 01:43

0 نظر

VAS 5054a bluetooth setup odis V2.23

VAG VAS 5054a Bluetooth diagnostic scanner ODIS software has upgraded to current V2.2.3 (2.23) version that works on Volkswagen and imported VW& Audi models. Following is the detail V2.2.3 ODIS installation instruction on Windows 7 operating system.

Operating system: Win XP/Win 7

1) Create new folder

Open My Computer>>D://

Create a new folder and name it “audi-vw-odis2.2.3”

Copy “VW audi ODIS2.2.3.part1” setup and paste it to the new created folder

Eject DVD Driver (F:) you will get VW audi ODIS2.2.3.part2, copy it to the new created folder

Eject DVD Driver(F:) again, you will get AUDI-VW ODIS2.2.3 license and part3 setup, copy both of them to the new created folder

Check the filer that contains these four files

Select AUDI-VW ODIS 2.2.3 part1.past2 and part3, extract them to a folder and rename the folder “ODIS 2.23”

Cut AUDI-VW ODIS 2.2.3 part1.past2 and part3

2) Install vas 5054 ODIS setup

Open My Computer >>D://>> “audi-vw-odis2.2.3”>> “ODIS 2.23”>> VWAUDIODIS 2.2.3>>dav>>Odis>>Trade-Wholesale>>software>>installation

Copy ODIS-Sv2.2.3-RC320L-Setup to C://

Open and run ODIS-Sv2.2.3-RC320L-Setup on C://

Select software language

Follow system prompt to save file to disk C

Search license at D:// audi-vw-odis2.2.3//AUDI-VW ODIS 2.2.3-License//license//license.dat

Install Microsoft Visual C++2005

Finish installing Setup Wizard

3) Activate & Configure ODIS V2.2.3 software

Open “AUDI-VW ODIS2.2.3 license” on D://, copy and replace “OffboardDiagLauncher” on the desktop

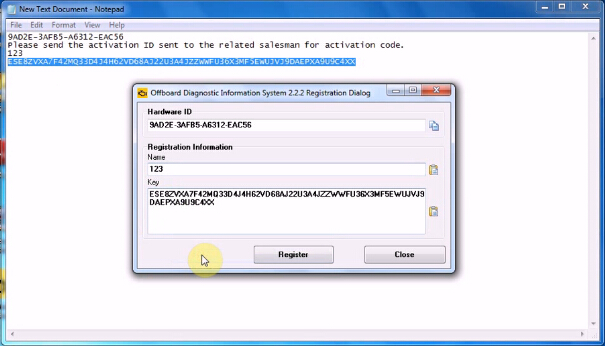

Open “OffboardDiagLauncher” on the desktop, copy hardware ID and send the activation ID to the related salesman for activation

Paste the activation registration name and activation key from salesman, click Register

Configure data input. Click “Select local directly” and locate Local Disk D://audi-vw-odis2.2.3//ODIS2.2.3//dav

Enter User Name: abc and keyword, press continue button

Update check results

Software is loading, you will be able to check the new software information

Exit the software main program

4) Connect vas 5054a

Connect VAS 5054a Bluetooth scanner with vehicle and computer

Open My computer>>Device Manager>>Softing Vehicle Interface>>VAS5054, to check the well communication is built

Open “OffboardDiagLauncher” on the desktop

Select “Start diagnosis” on the main function menu

Turn vehicle ignition to ON

VAS 5054a ODIS software will automatically detect vehicle information, select vehicle version and engine type to continue

Check the control unit

5) Bluetooth matching

Install device driver software

Find out Bluetooth connection on the right bottom corner of the system

Click Add a Device

Select VAS5054 interface to add to the computer

Select the device’s pairing code

Bluetooth connection is well built, the device is ready to use

6) Configure hardware

Open ODIS Service Diagnostic Interface Configuration on the desktop

Press Add EDIC button

Select EDIC to install VAS5054 from the drop down list

Select COM port as COM4

Software installation procedure is complete, start to diagnose vehicle with vas 5054a ODIS 2.2.3 software

Auto Diagnostic Tools VAS 5054A

obdtoolshop دوشنبه 18 آبان 1394 ساعت 00:43

0 نظر

Best quality Bluetooth VAS 5054A ODIS interface PCB board

There are several Bluetooth VAS 5054A ODIS V2.0/V2.02 diagnostic interface for VAG Group VW, Audi, Skoda, Seat, Bentley and Lamborghini etc. The quality varies from one to the other. OBDToolShop.co.uk here lists the best quality VAS 5054 interface by displaying the hardware PCB board.

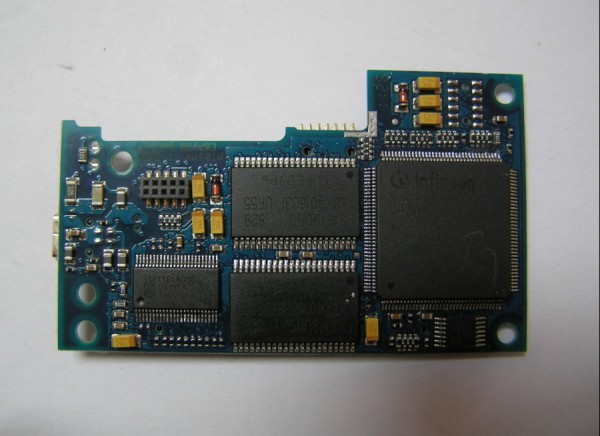

Best quality VAS5054a diagnostic scanner PCB board display: (Item No: SP33-C, SP33-BO full chips versions and SP33-B without OKI chip versions)

NOTE:

VAS 5054A full chips version includes all chips like the original one support all protocol of VW group (include UDS protocol). It is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.

VAS 5054a Bluetooth without OKI chip version does not support PWM protocol and UDS protocol.

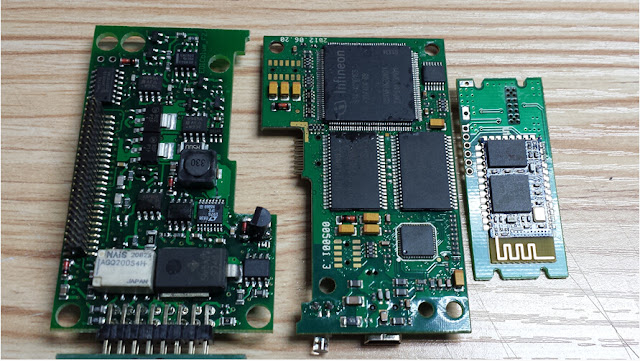

VAS 5054 hardware PCB board (with or without OKI chip)
