VAS 5054a bluetooth setup odis V2.23

VAG VAS 5054a Bluetooth diagnostic scanner ODIS software has upgraded to current V2.2.3 (2.23) version that works on Volkswagen and imported VW& Audi models. Following is the detail V2.2.3 ODIS installation instruction on Windows 7 operating system.

Operating system: Win XP/Win 7

1)      Create new folder

Open My Computer>>D://

Create a new folder and name it “audi-vw-odis2.2.3”

Copy “VW audi ODIS2.2.3.part1” setup and paste it to the new created folder

Eject DVD Driver (F:) you will get VW audi ODIS2.2.3.part2, copy it to the new created folder

Eject DVD Driver(F:) again, you will get AUDI-VW ODIS2.2.3 license and part3 setup, copy both of them to the new created folder

Check the filer that contains these four files

Select AUDI-VW ODIS 2.2.3 part1.past2 and part3, extract them to a folder and rename the folder “ODIS 2.23”

Cut AUDI-VW ODIS 2.2.3 part1.past2 and part3

2) Install vas 5054 ODIS setup

Open My Computer >>D://>> “audi-vw-odis2.2.3”>> “ODIS 2.23”>> VWAUDIODIS 2.2.3>>dav>>Odis>>Trade-Wholesale>>software>>installation

Copy ODIS-Sv2.2.3-RC320L-Setup to C://

Open and run ODIS-Sv2.2.3-RC320L-Setup on C://

Select software language

Follow system prompt to save file to disk C

Search license at D:// audi-vw-odis2.2.3//AUDI-VW ODIS 2.2.3-License//license//license.dat

Install Microsoft Visual C++2005

Finish installing Setup Wizard

3) Activate & Configure ODIS V2.2.3 software

Open “AUDI-VW ODIS2.2.3 license” on D://, copy and replace “OffboardDiagLauncher” on the desktop

Open “OffboardDiagLauncher” on the desktop, copy hardware ID and send the activation ID to the related salesman for activation

Paste the activation registration name and activation key from salesman, click Register

Configure data input. Click “Select local directly” and locate Local Disk D://audi-vw-odis2.2.3//ODIS2.2.3//dav

Enter User Name: abc and keyword, press continue button

Update check results

Software is loading, you will be able to check the new software information

Exit the software main program

4) Connect vas 5054a

Connect VAS 5054a Bluetooth scanner with vehicle and computer

Open My computer>>Device Manager>>Softing Vehicle Interface>>VAS5054, to check the well communication is built

Open “OffboardDiagLauncher” on the desktop

Select “Start diagnosis” on the main function menu

Turn vehicle ignition to ON

VAS 5054a ODIS software will automatically detect vehicle information, select vehicle version and engine type to continue

Check the control unit

5) Bluetooth matching

Install device driver software

Find out Bluetooth connection on the right bottom corner of the system

Click Add a Device

Select VAS5054 interface to add to the computer

Select the device’s pairing code

Bluetooth connection is well built, the device is ready to use

6) Configure hardware

Open ODIS Service Diagnostic Interface Configuration on the desktop

Press Add EDIC button

Select EDIC to install VAS5054 from the drop down list

Select COM port as COM4

Software installation procedure is complete, start to diagnose vehicle with vas 5054a ODIS 2.2.3 software

Best quality Bluetooth VAS 5054A ODIS interface PCB board

There are several Bluetooth VAS 5054A ODIS V2.0/V2.02 diagnostic interface for VAG Group VW, Audi, Skoda, Seat, Bentley and Lamborghini etc. The quality varies from one to the other. OBDToolShop.co.uk here lists the best quality VAS 5054 interface by displaying the hardware PCB board.

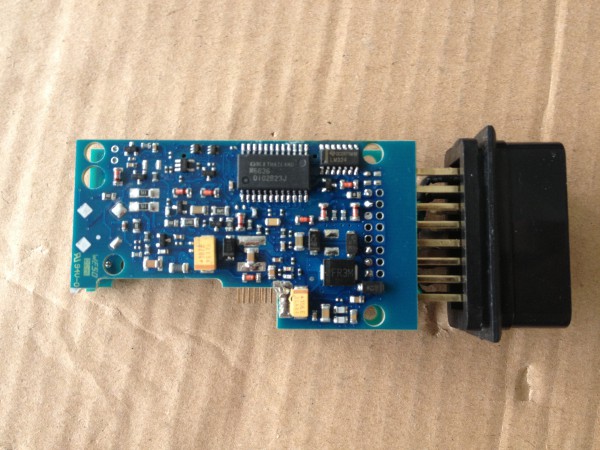

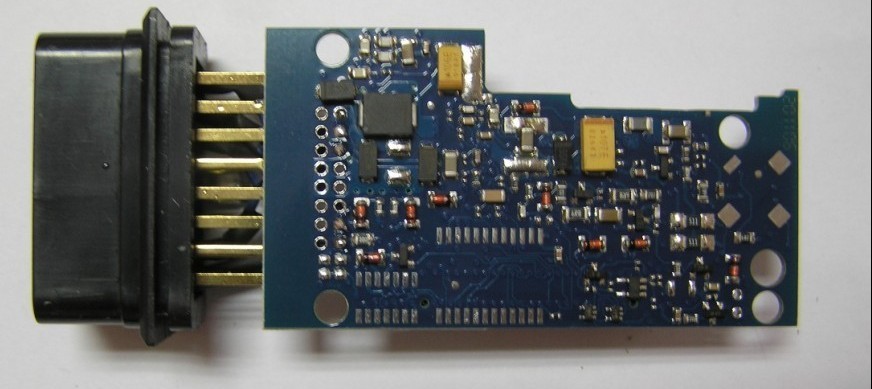

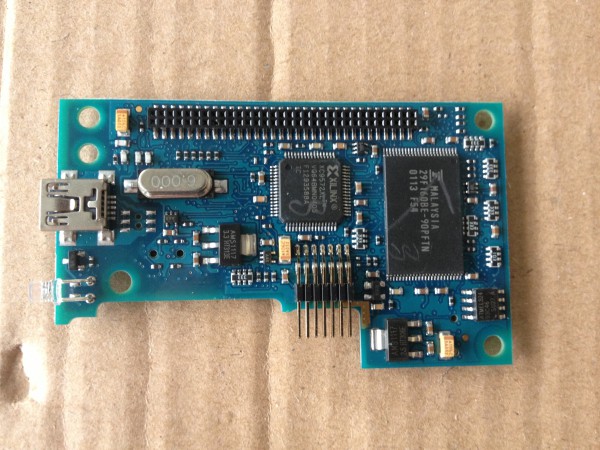

Best quality VAS5054a diagnostic scanner PCB board display: (Item No: SP33-C, SP33-BO full chips versions and SP33-B without OKI chip versions)

NOTE:

VAS 5054A full chips version includes all chips like the original one support all protocol of VW group (include UDS protocol). It is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.

VAS 5054a Bluetooth without OKI chip version does not support PWM protocol and UDS protocol.

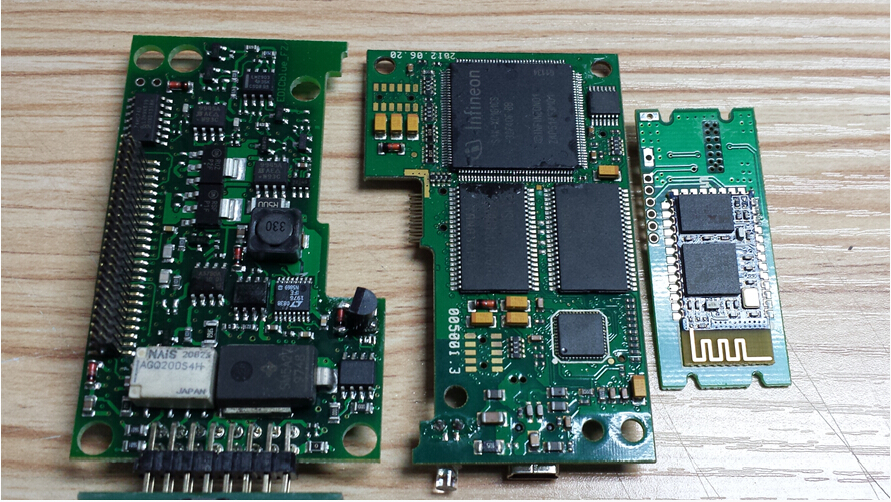

VAS 5054 hardware PCB board (with or without OKI chip)

All about vas 5054a interface diagnostic tool

1.vas 5054a 2.2.3 (VAS 5054a 2.2.3 Software)

2.vas 5054a manual

3.vas 5054a bluetooth setup

4.VAS 5054a Software Free Download

5.VAS 5054A introduction

6.How to use The VAS 5054A ODIS V2.0

Best Quality VAS 5054A ODIS V2.0 / V2.02 Bluetooth Diagnostic Tool With OKI Chip UDS Protocol for VW Audi Skoda Seat:

This is from obd tool website technical support: All about vas 5054a interface diagnostic tool

VAS 5054a Software Free Download

From www.eobdtool.co.uk

Hi dear customer

Have a nice day

If you have buy VAS 5054A VAG Diagnostic Tool from us before, you can download VAS 5054A ODIS V2.0 Software to update your old VAS 5054A Interface

You just need uninstall your old VAS 5054A Software, then re-install the new ODIS software again

If any problem, please feel free to contact us

Contact information:

Whatsapp: [phone]

Live Support: Chat with us online

Email: [e-mail]

Skype: Obdtool.co.uk

VAS 5054A introduction

VAS 5054A odis v2.0 Brief introduction：

It is Germany's Volkswagen and Audi for their special service station designated essential car detector, in the world not only the Volkswagen, Audi, Volkswagen, Skoda Czech Republic, Spain Volkswagen Seat, or domestic Shanghai Volkswagen, FAW-Volkswagen, Audi and other services stations are used equipment. Its function is to any other diagnostic instrument can not be replaced.

VAS 5054A is a universal diagnostic interface line, mainly for Volkswagen Group vehicles and automotive OBD systems from other functions.

VAS 5054A Function introduction

The integrated Bluetooth interface connects the vehicle to a laptop, desktop PC or test system. When using the VAS 5054A diagnostic vehicle, you do not need to use other cable to connect it!

Wireless connection specific distance depends on the environment and on the computer's Bluetooth adapter. Serial Port (SPP) is used for data transfer via Bluetooth. Bluetooth can support different security levels.

Communication protocols can support the following vehicles:

... K-line (ISO9141-2)

... High-speed CAN (IS0 11898-2)

... Low-speed CAN (ISO 11898-3)

... J1850 (SAE J1850)

VAS 5054A Instruction manual：

Which can be processed directly in the VAS 5054A vehicle agreement. This ensures fast response and reliable real-time performance, instead of relying on computer systems. Every time the connection is established, VAS 5054A software applications are installed with the version of the program on a computer synchronized. Thus, when a new version of the software installed on the computer application, VAS 5054A can automatically adapt to any new features.

Diagnostic application and the associated Diagnostic Base System installed in the computer application, diagnostic base system can access VAS 5054A via Bluetooth or USB.

Access via Bluetooth:

When a connection is established with the VAS 5054A, the Bluetooth software provides a virtual serial port, diagnostic base system via this serial port to connect to the VAS 5054A. When you install the diagnostic application, you need to make special note of the serial port.

Access via USB:

Via USB cable to connect the VAS 5054A to the application PC serial port via a linker detects VAS 5054A, and you install the diagnostic application is automatically installed drive.
