OP-COM opcom 2010V firmware 1.59 installation step-by-step

OP COM USB diagnostic interface for Opel and Vauxhall firmware has newly updated to V1.59. Here is the step-by-step instruction on how to install opcom 1.59 software.

Software version (SW): 08/2010

Firmware version (FW): V1.59

How to install OP-COM 1.59 software?

1)    Install Op-com driver

Open My Computer

Open OP-COM (E:) CD software

Create a new folder “op-com” on Local Disk (C:)

Copy all files in OP-COM CD to the “op-com” folder

Send OP-COM Diagnostic software to Desktop (create shortcut)

Connect China clone OP-COM V1.59 interface with computer via USB port

Wait the system to detect hardware wizard

Select “Install from a list or specific location (Advanced)”, click “Next”

Include and browse location to C:﹨op-com﹨Drivers, click OK

Click “Next”

Click “Next”

Click “Finish” when opcom driver is completely installed

Open My Computer>>Manager>>Device Manager>>Universal Serial Bus controllers>>USB Serial Converter to make sure well communication is built

2) Run Op-com software and diagnose

Plug the op-com cable with vehicle via OBD diagnostic socket

Open “Shortcut to OP-COM” software on desktop

OPCOM CHINA-CLONE 08/2010

Click “Settings”

Click “Test Interface”, you will able to see the OPCOM serial number and firmware version V01.59

Click “Close”

Click “Save Config”

OP-COM Configuration saved! Press “OK”

Back to Opcom software main menu

Select “Diagnostic” function

Select “Automatic Vehicle Identification”

Select “KWP-2000” (K-line) or “CAN” and select diagnostic connector

The op-com 2010V software will display vehicle information, VIN, model, engine code etc

Click “Diagnose ECM” button

Select ECM type and diagnostic connector

Click “Fault Code”

Op-com will display all error codes stored in ECM

The click “Clear Fault Codes” to erase error codes

Perform other diagnostic functions or exit the software program

Unplug the op-com USB interface.

How to update clone Opcom firmware to 1.59

This guide will help you how to upgrade clone Opcom firmware to 1.59, As we all know, clone opel Op-com  diagnostic interface just work with 2010.08 opcom software, and with 1.45 firmware.

New OPCOM China Clone is available now. Below we make the upgrade instruction of Op com china clone 2014 Opcom firmware upgrade to 1.59 guide.

1:  True V1.39 Firmware PCB

2:  Latest V1.45 Firmware PCB

How to update clone Opcom firmware to 1.59

Step 1: Download free 2014 op-com software, and install the program.

2010.08 opcom clone software Free download link:

http://pan.baidu.com/s/1kTvDJZT

Step 2: Make sure obd tools website (obdtool.co.uk) Op com china clone 2014 onnect the computer to install the drivers correctly, PLS disconnect the internet.

Step 3: Open the OCflash and update the op-com with firmware 1.59 HEX file

Step 4: At last we opened the vaux-com software version is 2012.08, you can check obdtool.co.uk opcom firmware version have be updated to 1.59.

KESS V2 V2.13 Software Installation Notice and Guide

Newest V2.11 software for KESS V2 has been just launched for a short period of time, and now obdtool offers you the KESS V2 Master, attached with lastes V2.13 softare.

Software Version: V2.13

Hardware Version: V 4.036

Pre-installation Important Tips:

1. Disable Internet connection and PC/Laptop CANNOT have anti-virus software;

2. KSuite V2.13 Software CANNOT be installed on for KESS V2 SE87 and SE87-B (Item Number you can search on OBDTool);

3. Supported OS: Windows XP and Win7;

PS: You are recommended to use our Ghost Windows XP Professional SP3;

Free Download File and Installation Guide PDF File:

http://www.chinaautodiag.com/search/?q=sp3

How to install KSuite V2.13 software?

Note: Buy newest V2.13 on obdtool.co.uk, we will send you the installation video;

1. Insert package-attached CD software into PC drive and open E:\; Copy and paste KSuite V2.13 Folder into desktop; open this folder and then extractKSuite2.13 Zip File;

2. Then run Setup, you can easily finish K-Suite setup according to system prompts;

3. Next Right Click K-Suite and select Properties >> Find Target Folder, and then delete all files in it;

4. Open already extracted KSuite2.13 Folder; Copy all files (Except Help Folder) into C:\K-Suite Folder;

5. Open KSuite v2.11-2.13 (E :), Copy Help Folder into C:\K-Suite Folder;

6. Connect KESS V2 device with PC, the PC will automatically come out Hardware Wizard Window asking for installation, easily complete via the prompts;

7. Check whether a good connection bewteen PC and KESS V2 device;

8. Run K-Suite Icon; the following part is some screen shots for Newest V2.13 KESS V2 Software:

Got KESS v2 fw4.036 from China and test Peugeot Renault

2th April, 2015

Placed an order of kess v2 fw4.036 from obdtool.co.uk €212.49 plus ==shipping.

I ordered this one:

http://www.eobdtool.co.uk/wholesale/kess-v2-master-obd-ecu-programmer.html

7th April, 2015

Arrived today my fw4.036 Kess V2, They do not supply the bin or hex file with firmware, token free they tell me, no jlink here.

Installed today, tomorrow I will try if it works on kline and can

9th April, 2015

Tested today with

Peugeot 307 2.0 HDI edc15c2 kline - no id, no read

renault f9q 1.9dci edc16 can - no id, no read

I was advised: hw needs some update too....old bug like many kess units have.... so have a look at your parts....if you have not these parts, change them and it will work.

One poster post solution for example.

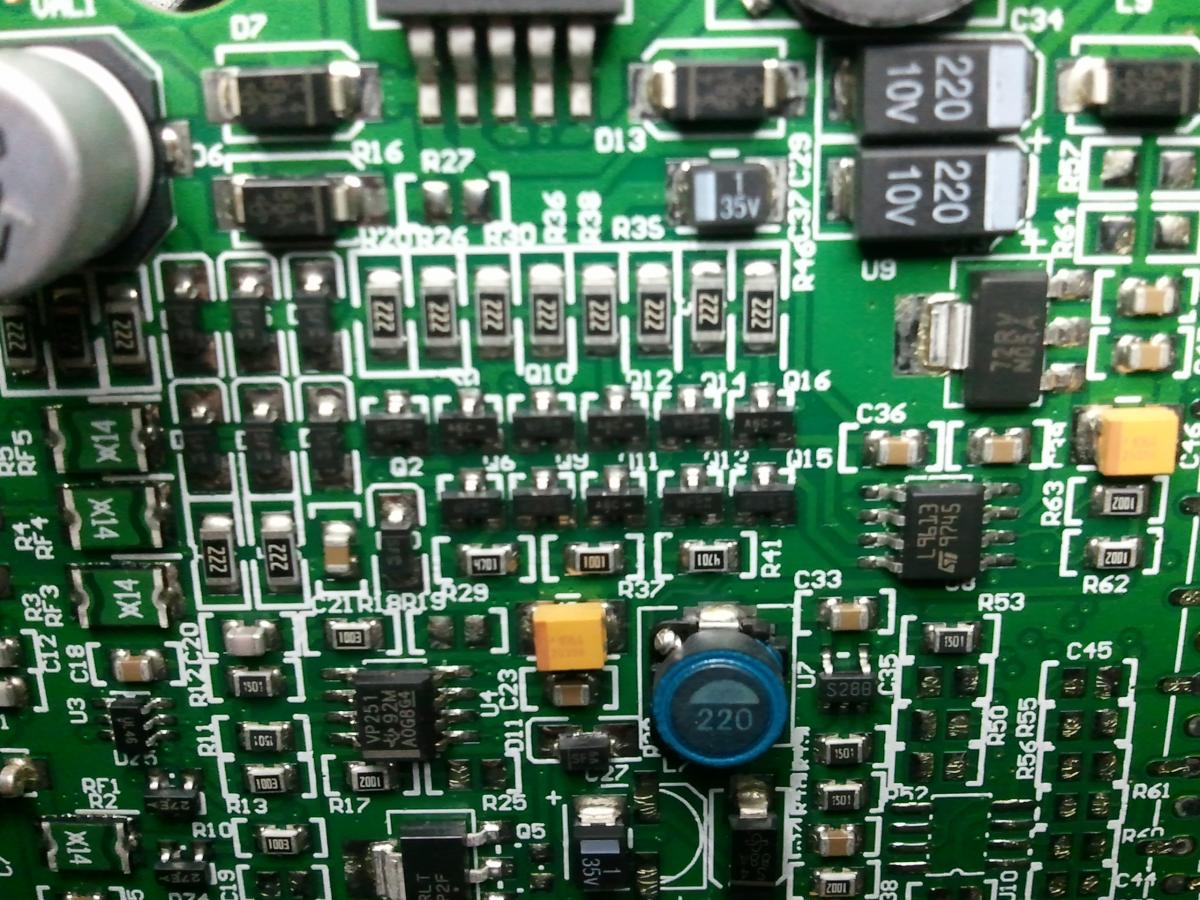

hardware repair solution :

W** - BCR112E

А6c - MMUN2113

6DW - BC817

Must be changed all of them, but this is a partial one : filters + capacitors is also needed N05B , cap 227 , 2907a , nfe6(filters)

an this is only the begining. Step by step based on the tests that i perform and pcs delivery from tme i will update you. I have full schematic original one  . The one i am working on is not mine .

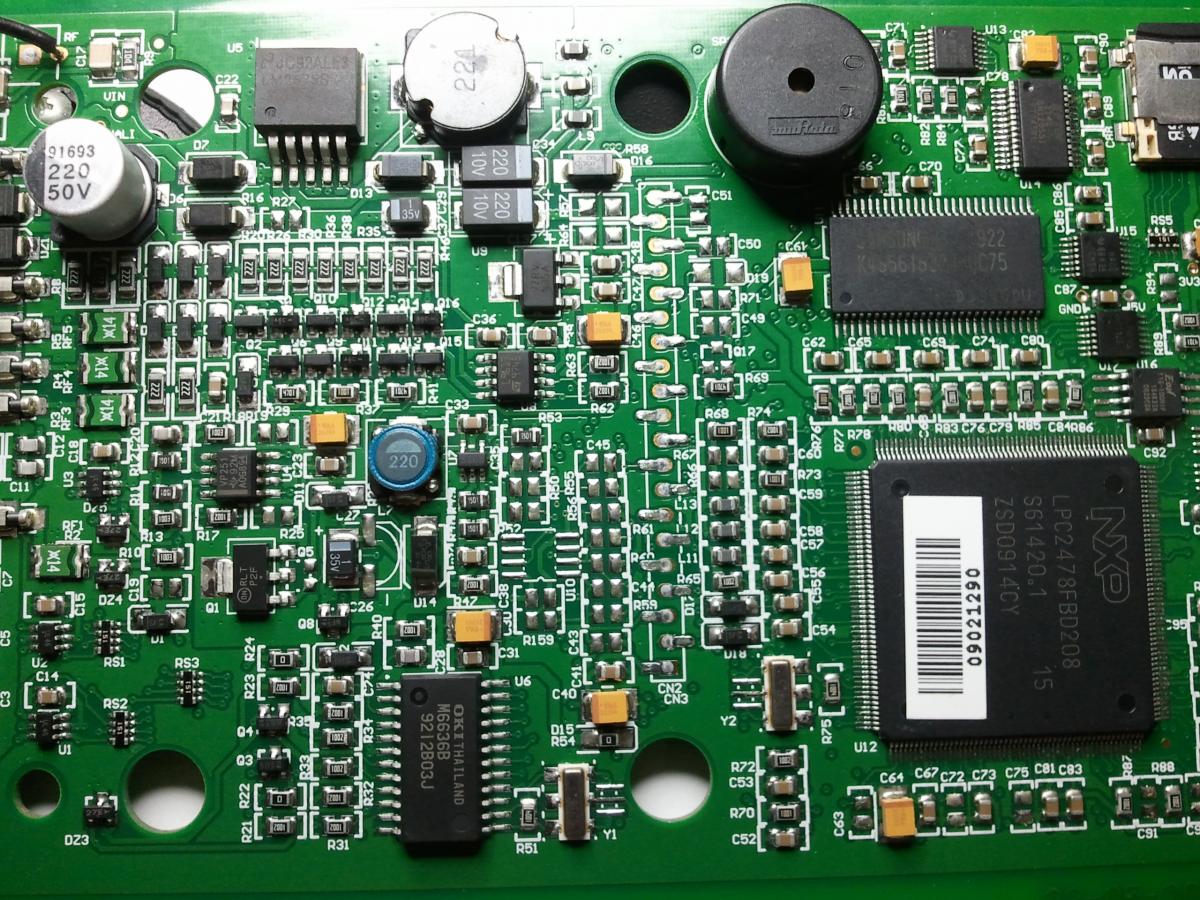

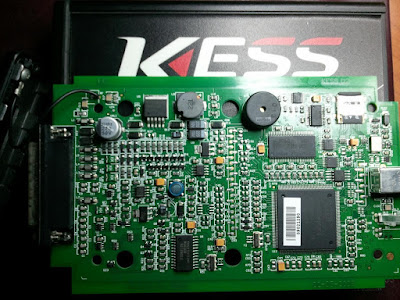

After checking the above PCB board, I thought missing oki chip on mine.

But an experienced technician confirmed:

Oki chip was primarily for Ford J1850 PWM, but this is now done directly from the NXP, so not fitted anymore.

Finally I solved, after a little soldering rework on nxp and esmt chip read ok iaw 4af and edc17cp02

This is from obd tool website technical support: Got KESS v2 fw4.036 from China and test Peugeot Renault

How to reset tokens of KESS V2 V2.15 Master UK ECU Chip Tuning

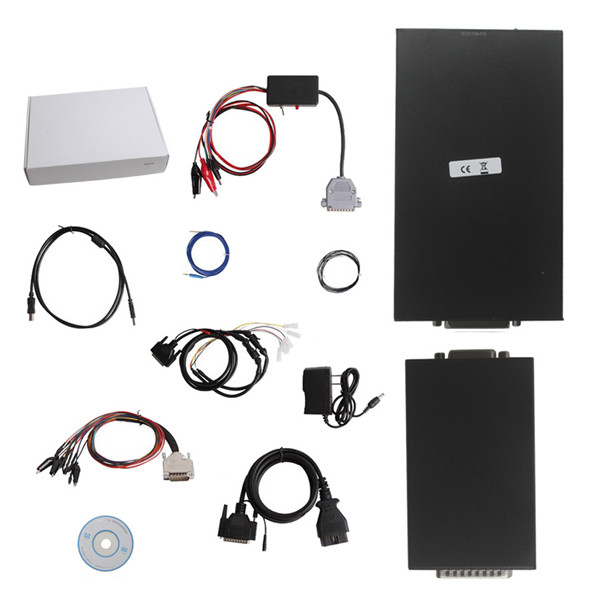

2.15V KESS V2 unlimited token version with firmware version V4.036 can read and write ECU via OBD2 port directly, ECU picture and connection manual coming with KESS V2 Ksuite software, much easy to use for customers. KESS V2 V2.15 master UK ECU chip tuning with multi-language works for bike and car with coverage of all major brands and protocols including Line, CAN, EDC17 and MED17. Here is the step-by-step instruction to help reset KESS V2 tokens.

1. Open "My Network Places" on the desktop and click "View network connections" on the left menu "Network Tasks".

Disable local area connection and wireless network connection; otherwise, you would get the interface damaged.

Close the interface.

2. Right click "My Computer" on the desktop to select "Manage".

"computer management"> "Device Manger" on the left menu> "PC-201411261510" (scroll down)> "universal serial bus controllers"> "USB device".

Close the interface.

3. Right click the compressed file"Tool" to extract on the desktop.

4. Open the extracted folder "Tool" and move all the three files to the desktop.

5. Cut the compressed file "KSuite_tok..." on the desk and copy it on the Local Disk (C:).

Close the two interfaces.

6. Delete the empty folder "Tool" and the compressed file "Tool" on the desktop.

7. Open "K-Suite" and choose OK in the ATTENZIONE interface and then close the following interface.

8. Re-name "Token1.tok" to "Token47.tok".



And then click "K10033818" and you can get a new compressed file "Kessv2-2.1..." on the desktop.

9. Prepare one 2G TF card and format the card.

NOTE: select "Quick Format"

10. Open the compressed file "Kessv2-2.1..." on the desktop and unzip it to the formatted 2G TF card--- disk (F:).

11.Delete the compressed file "Kessv2-2.1..." on the desktop after unzipping.

12. Re-name "Token47.tok" to "Token48.tok".

13. Copy "Token48.tok" on the desktop to the folder"Tokens".

Close the interface.

14. Open "My Computer"> "Local Disk (D:)", and then delete the folder "KSuite_tokens".

Extract the compressed file "KSuite_tokens" on disk (C:).

15. Open the extracted file "KSuite_tokens" on disk (C:).

16. Rename "K10033818.CFG" to "135K10033818.CFG".

to

17. Cut the renamed "135K10033818.CFG" and paste it on "C:\KSuite_tokens\KSuite\update".

Close the interfaces.

18. Open "K10033818" on the desktop and choose OK to continue.

19. Select KSuite direcory "my computer"> "Local Disk (C:)"> "KSuite_tokens"> "KSuite".

Then reset token count.

20. Choose OK to proceed.

Updating...

21. Select "Info" to read it. And then exit.

Complete resetting KESS V2 V2.15 master UK ECU chip tuning tokens.

NOTE:

Please connect KESS V2 with computer as the following pic shows when you are adding tokens. Do not connect KESS V2 to your vehicle when adding tokens!

This is from obd tool website technical support: How to reset tokens of KESS V2 V2.15 Master UK ECU Chip Tuning
