DAF VCI Lite (V1) Replace DAF VCI 560 For DAF Truck

DAF VCI Lite fully replaces DAF VCI560, works with all DAF trucks from oldest till newest EU6, is much cheaper than old VCI560, much smaller, and best of all ALL CABELS and CONNECTORS ARE ECE STANDART, not custome, so anyone can repair broken cable, not needed to buy special repair plugs.

Supported languages: English, German, Dutch, Danish, Czech, French, Italian, Finnish, Hungarian, German, Spanish, Norwegian, Russian, Greek, Polish, Turkish.

(DEFAULT LANGUAGE PROVIDED FOR USER IS ENGLISH !!!!)

Comparison between DAF VCI Lite and  DAF VCI560:

DAF VCI lite (V1) in comparasion to VCI560 has only one part missing, that is not needed for any diagnostic, reprograming, configuring purposes and DAVIE will be fully functional, it will not see ignition from OBD, and does not have status LED and wifi (ONLY USB).

DAF VCI Lite (V1) Professional DAF Diagnose and Programming Tool Functions:

http://www.eobdtool.co.uk/wholesale/daf-vci-lite.html

DAF VCI Lite Software display:

DAF VCI Lite Test display:

This is from EOBDTOOL website technical support: DAF VCI Lite (V1) Replace DAF VCI 560 For DAF Truck

How to solve Xentry [2221-45] No access authorization

Optional solutions of Xentry [2221-45] No access authorization

Here are some optional useful solutions of how to fix 2016 SD connect c4 open shell error [2221-45] “No access authorization for XENTRY Diagnostics ...” some solutions are from eobdtool engineers, some from users sharing at forums.

Error message:

No access authorization code!

[2221-45] No access authorization for XENTRY Diagnostics was found on the server. You must contact the user help desk.

Here are some optional solutions, by professional engineers ans experienced user.

Solution I from eobdtool engineers:

Software version: Xentry 2016.7

Go to Local Disk C:/ Mercedes-Benz folder/ Xentry folder/ fusoko folder/eclipse folder/plugins

Then delete the specified file begin with “com.daimler.xentry.diagservice_1.6.0.201607....”

For Windows 7

For Windows 8

Disclaimer:

Below is all the customer solutions. TRY ON YOUR OWN RISK.

Solution II from a user

Software version: Xentry 2016.05

In folder

C:\Program Files (x86)\Mercedes-Benz\Xentry\fusoko\eclipse\plugins

Rename

com.daimler.xentry.diagservice_1.6.0.201603141505.jar

to

com.daimler.xentry.diagservice_1.6.0.201603141505.jarold

Then paste in

com.daimler.xentry.diagservice_1.6.0.201603141505.jar

from 2221 052016 folder

Solution III from another user

Software version: 05.2016 Xentry

Free download Xentry-2221-45-fix.rar:

https://mega.nz/#!Ip1GkQhR!hHakXl1U1Q5SEE_5NlIZcfSNRE_2CKDJSL9OLXTexYw

(2 fix)

Solution IV with lots of thanks & likes in a forum

Software version: Xentry 2016.5

replace the file call com.daimler.xentry.diagservice_1.6.0.201605121225.jar in the folder

c:\program Files(x86)\Mercedes-Benz\Xentry\fusoko\eclipse\plugins

with the attachment below

2016.05-Xentry-[2221-45]-Fix.rar:

https://mega.nz/#!11kxTZZA!uBWlUVOx7XzWai-T7eSPJt6V_lVhG2Pl5PI02oUNXUM

Wish this helps

This is from EOBDTOOL website technical support: How to solve Xentry [2221-45] No access authorization

OBDSTAR F100 ALL car list of Ford Mazda Jaguar Land Rover

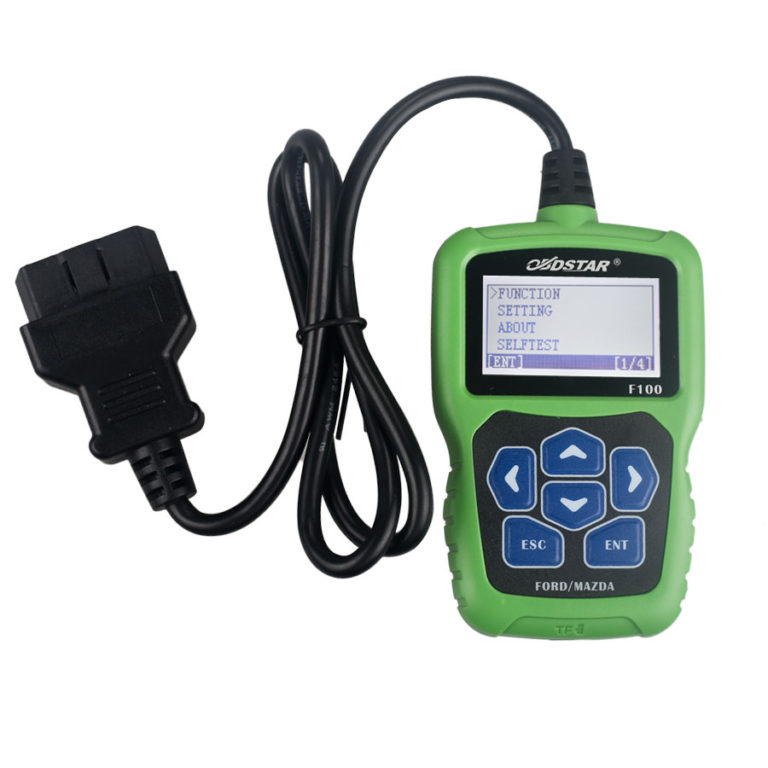

OBDSTAR F100 is most powerful Key Programmer for Ford and Mazda, F100 is also an odometer tool for Ford, Mazda, Jaguar and Land Rover. Here is the OBDSTAR F100 all car list of Ford Mazda Jaguar Land Rover for your reference.

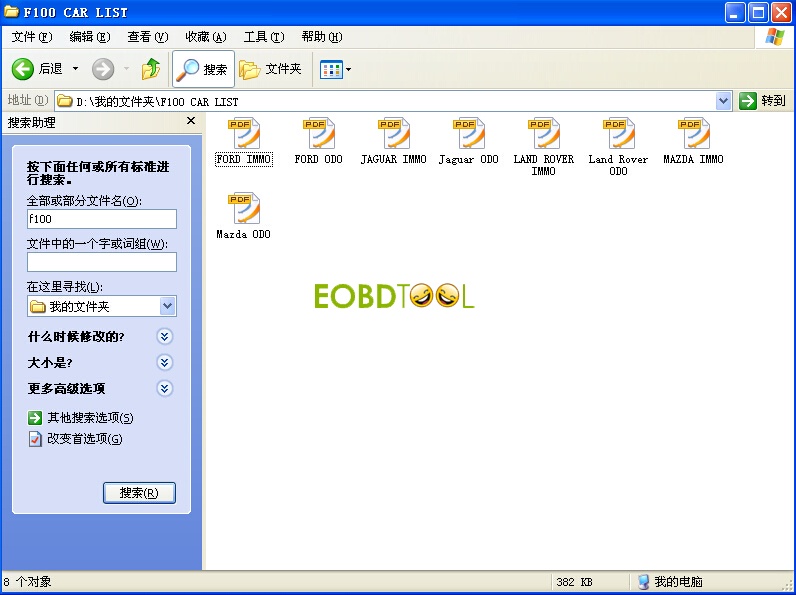

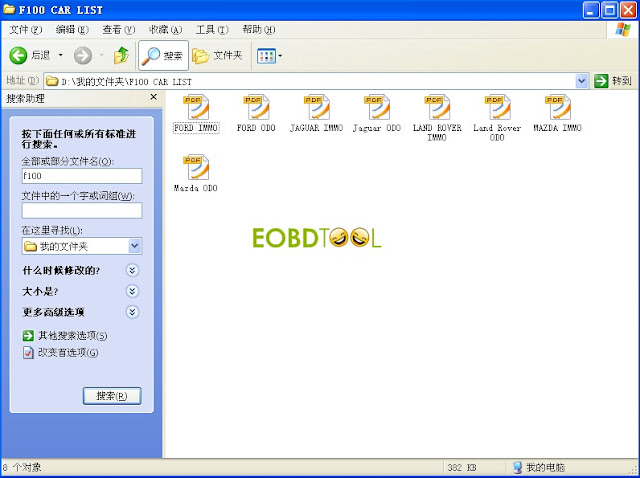

You can download OBDSTAR F100 all car list, check this link:

http://www.eobdtool.co.uk/wholesale/obdstar-f100-mazda-ford-key-programmer.html

Asked question about OBDSTAR F100 on eobdtool.co.uk website, share here with you.

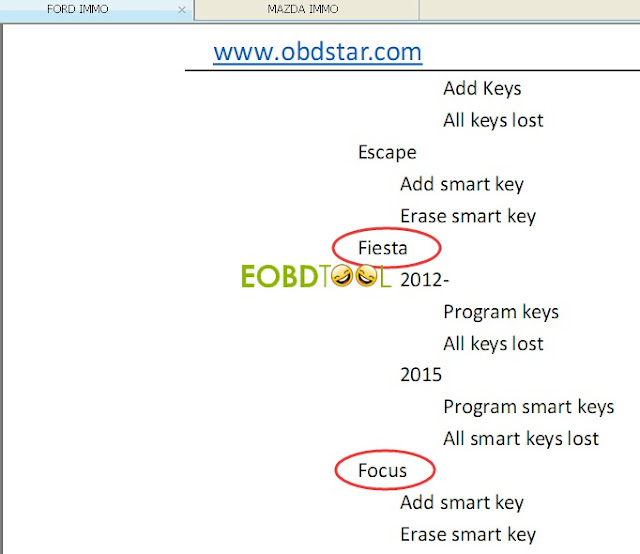

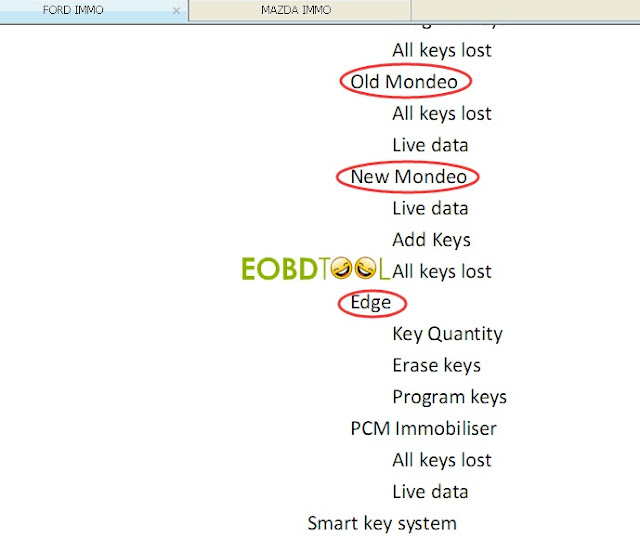

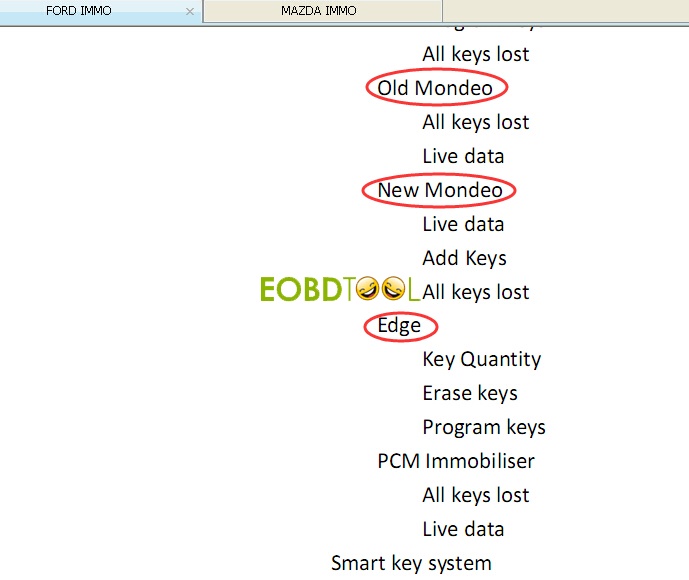

Q: Are the Models covered by this F100 only US Ford and China Ford? I cannot make out what would work for European Fords from the OBDSTAR site, Specially Fiesta, focus, Edge, Mondeo and cx5 from Mazda?

A: OBDSTAR F100 Ford car is only listed US Ford and China Ford, pay attention that European Ford is the same as China Ford.

Of course, OBDSTAR F100 can do Ford Fiesta, Focus, Edge, Mondeo and Mazda CX5.

Where to get OBDSTAR F100 Mazda/Ford No Need Pin Code Key Programmer?

Only for €152.99 original OBDSTAR make

http://www.eobdtool.co.uk/wholesale/obdstar-f100-mazda-ford-key-programmer.html

CarProg ECU Tool Opel Hybrid ECU programmer

Opel Hybrid ECU programmer (carprog v8.21 and v9.31 online):

OPEL login reader from motor hybrid ECU. Works by OBDII connector using cable

A1, or removed from car using cable A15. On-table connection wiring diagram you

can find in user manual.

This CarProg Opel ECU reader you can use in these cases:

• use it like Opel security code reader by OBDII for transponder key

programming. In this case you don't need call dealer for get security code or

remove immobilizer to read it manually. For key programming use any key

learning tool - TECH 2, AD100 OP-COM or any other;

• use it for used motor ECU repair, reset Engine Control Module and

programming. ECU security code is necessary to set back the Engine Control

Module to its factory default state. Prior to replace, you have to reset it back to

its factory default state. In this way, you can install it into another car. With

TECH2 or other equipment you can do this work, but always you need used

motor ECU security code (you can read it with CarProg) and car immobiliser

security code (remove immobiliser and use TMS370 programmer to read it).

Each factory default state Engine ECU has some limited running time, without

immobiliser (max 10 attempts);

Supported cars:

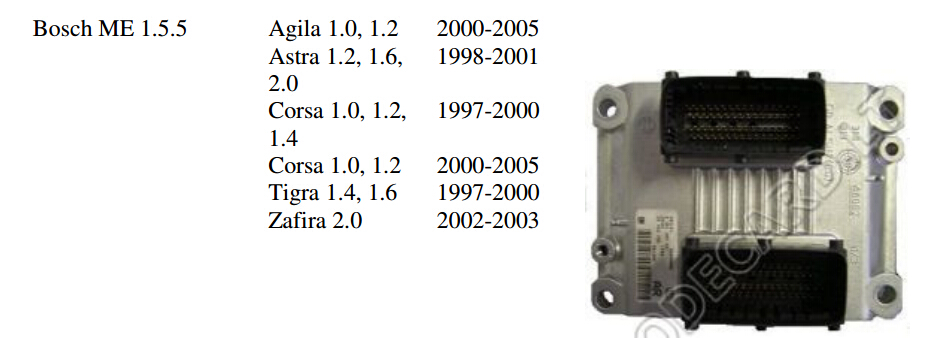

Bosch ME 1.5.5

Agila 1.0, 1.2 2000-2005

Astra 1.2, 1.6, 1998-2001

2.0

Corsa 1.0, 1.2, 1997-2000

1.4

Corsa 1.0, 1.2 2000-2005

Tigra 1.4, 1.6 1997-2000

Zafira 2.0 2002-2003

See pictures:

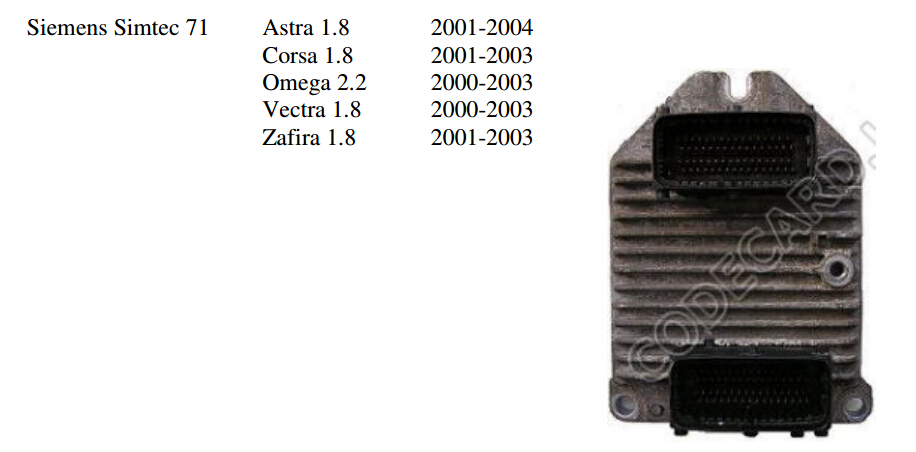

1. SIMTEC 71 and SIMTEC 71.1 ECU connection on-table diagram:

2. BOSCH ME1.55 ECU connection on-table diagram:

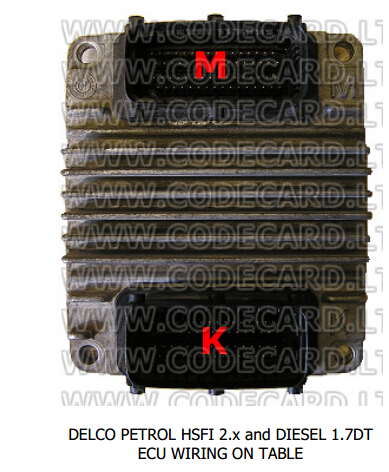

3. DELCO PETROL HSFI 2.x and DIESEL 1.7DT ECU connection on-table

diagram:

4. DELCO PETROL HSFI - C ECU

This is from EOBDTOOL website technical support: CarProg ECU Tool Opel Hybrid ECU programmer

Free download Honda HIM HDS v3.101.015 diagnostic software

Boys! Good news for you all! Here comes the latest Honda diagnostic system HDS v3.101.015 to to work with HIM HDS for diagnosis on Honda vechiels from 1992 to 2014.

HDS 3.101.015 - unkown security

https://mega.nz/#!iRQWRIba!DgkpsajZCMYcd7_0OIjJqvwM9XEIXByHtU49wmE_Ipw

HDS V3.017 - safe & activated

http://www.eobdtool.co.uk/wholesale/honda-hds.html

Note:

HDS 3.101.015 is being tested by eobdtool engineers, so you will TRY ON YOUR OWN RISK.

If you don’t want to take a risk, you can try HDS 3.017 above - teated by engineers and thouthands of users.

HIM HDS V3.101 installation reference:

1- run HDS 3.101 setup to install

2- install CM Update (ECU Rewrite) setup

3- setup Computer management: set COM port 1

4- run Honda Diagnostic System for use

(HDS can test Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc. )

This is from OBD2 Francais website technical support:Free download Honda HIM HDS v3.101.015 diagnostic software
