obdtool another blog
obdtool in ukobdtool another blog
obdtool in ukBest match KTAG + KESS V2 + ECM TITANIUM 1.61 for ECU tuning
Here is a super combination kit available: KTAG V2.13+KESS V2 V2.22+ECM TITANIUM V1.61. This ECU tool combination will make your ECU programming perfectly every time. If you buy them separately, KTAG V2.13 €119 + KESS V2 V2.22 €69.99 + ECM TITANIUM V1.61 €19.99 = €208.98. But now you are offered a much lower bundle price charge only €180.99. €27.99 saved!
This combination kit of KTAG V2.13+KESS V2+ECM TITANIUM 1.61 is a super and best match, why?
First, we need to make clear several ways for ECU programming and tuning. Then we can see whether this combination kit is helpful.
1) Program ECU via OBD2 communication port (the easiest and the fastest way)
2) Program ECU via BDM port which is on the ECU's motherboard (the most stable way)
3) Program ECU in boot mode, on the table
4) Solder the EEPROM out of ECU and reprogram it
KESS V2 is perfect for OBD use, while K-TAG is perfect for BDM, K-TAG also can does boot mode (Tricore and ST10).
Second, back to these ECU tools, following info will make their advantages clear.
Both KESS V2 and KTAG V2.13 are no tokens limitation. When tokens are used up, we can add tokens following the guide video in CD (No need to program tokens with j-link programmer or to remove /desolder chips)
Third, ECM TITANIUM 1.61 has the following advantages:
Crack version, do not need activation
No key needed
With 18475 driver
Work well on Windows XP and Windows 7
Checksum work 100% fine
Multi-language available: Italian/ English/ Portuguese/ German/ French/ Spanish
Last point: let’s see what other people think about KESS, KTAG and ECM Titanium at
- Without any doubt the KESS V2 is the best tuning tool available today. It’s fast, reliable, has boot mode for EDC17 with tuning protection, excellent customer service and tech support. And most importantly the coverage is fantastic. Get KESS v2 and I promise you won’t be disappointed, so many nice features that most tools just don’t have.
- KESS is for OBD, it’s very good tool. KTAG is for BDM/JTAG/BOOT. Alientech devices are good. Personally I would choose KESS and KTAG both.
- KESS have the option for recovery, but in my view I will do my job with both KESS and KTAG.
- I have both these tools and I prefer KESS because I can use it tuning truck well.
- I own a KTAG and it works perfectly for new BMW F series.
- I use KESS V2 to program ECU directly; it can be connected with OBD port. But sometimes I have to take apart the ECU to read and write, so I work with KTAG as well.
- I recently bought this software ECM TITANIUM V1.61 very cheap but good for me. Anyway the file is very small very easy to install and will not cost you anything to try it.
- ECM Titanium can make right checksum, but you need push checksum menu and correct when all job is done. (ECU is MEG1.1 on 700cc Roadster. 0261205006)
OBDSTAR X-100 PRO Mileage Correction and key programming Feedback 2016.7.13
OBDSTAR X-100 Pro tested okay for the following models on mileage change:
1)For VAG group vehicles:
Audi A3 is on the list from 2003 - 2006, 2007- up personally I have not tried
Audi A3 2008 monocolore OK
it can make Audi normal a6 before 2009
Volkswagen Tiguan 2013 TFT color dash nec+24C64 ok
Volkswagen caddy 2014 white meter NEC24C64 via obd
Volkswagen Caddy 2014 with TFT Color dash via obd
Volkswagen Caddy 2014 with TFT Color dash via obd
Seat Ibiza 2014 Via obd ok
Volkswagen Polo 2014 with NEC24C64
Volkswagen Polo 2014 White Meter NEC24C64 using golf menu OK
-Vw polo 2012- Make back up of Eeprom first save it then do the mileage correction. If the reading is failed means u can't proceed to the mileage correction I do many many polo with this tool just plug and play.
06 a8 OK
2013 golf with black/white screen - OK (with latest update)
Golf 6 2012 white color, write 2 sec !!
Q5 2013 via obd ok
Tiguan 2012 tft color NEC24C64 ok
Passat 2009 mileage nec+24c32 OK
kia sportage r 2014 d70f423 mileage tested ok
Can support vw micronas
Skoda Octavia 2010 nec+24c32 VDO mileage OK
Skoda Superb 2012 via obd mileage ok
Polo 2004 VDO k Line mileage OK
Audi A4 2007... in 20 seconds by OBD.
Volkswagen Amarok 2014 ok ( chose golf NEC 24C64 white meter 2013-)
2013 jetta mono display ok.
Audi q5 2010 obd ok
Audi Q5 2011 OK
visteon dash 95320 vw golf 5 with success, just plug and play
Audi a4l 2012 by obd ok
2012 jetta nec+24c64 black/white display-20 sec ok
VW T5 2011 - OK
2013 audi SQ5! 15min obd
PERFECT WORK IN GOLF 7 ALL MODELS
2) For Hyundai change KM/miles
Hyundai verna fluidic obd ok
Hyundai accent 2012 by obd ok 24c16
Hyundai Creta D70F3525 ok
Hyundai Verna 24c16 ok
I20 2015 TESTED.VERY GOOOD.OK OK OK
Hyundai Accent 2011... by obd in 2 seconds
hyundai Accent 2011... by obd in 2 seconds
Hyundai I20 2015+ with D70F35xx (no external EEPROM) ok
Hyundai Genesis 2015+ with D70F3523 (no external EEPROM) ok
hyundai accent (korea) 24c16 obd not ok but choose AZERA D70F3423 and read km write ok and did same with RIO but choose kia ceed D70F3423
Hyundai I 20 Elite via obd ok
Hyundai Creta Via obd ok
Hyundai accent Blue 2014 work ok in Hyundai azeera option
Hyundai Accent 2011 - OK
Hyundai Accent 2012 - OK
Hyundai Sonata 9
3)Kia
Kia Sportage with 24c16 2012 work perfect
Kia sportage 2013 round dash screen obd success
Kia sorrento 24c16 al ok obd
Kia soul also as kia ceed goes ok .... also did ML W164 obd ok. After recalibration remove fuse or batterry for 5 sec and ok
Kia Sportage 2013 24c16 via obd2 ok
kia Sportage 2014 D70F3536 via obd2 ok
4) Opel
Opel Isignia 2011 works well via obd
Astra J 2010 ok
Astra J 2011 read Security Code ok (via gm cruze)
Opel Insignia 2009/2011 OK
Opel Zafira 2012 OK
Opel astra 2010 2011 2012 NOT OK
Opel Insignia 2010 - OK
5) Chevrolet
Chevrolet Cruze 2010, 2011, 2012 via obd Ok
Chevrolet Cruze 2014 via obd take less than 4 seconds
Chevrolet cruze lt 2012 alla key lost ....OK 10 min programing and mileage correction ok
Chevrolet CRUZE 2012, Read security code ok and Mileage ok
Chevrolet Cruze 13 miles ok
Chevrolet Captiva 2012, 2013 ok
Chevrolet tahoe 2009 obd ok
Chevrolet Cruze 2010 - OK
Chevrolet Cruze 2011 - OK
6) Range Rover
Range Rover Evoque 2013 via obd ok
Range Rover Evoque SD4 2013 ok less than 2 seconds
Evoque 2012 works OBD
Rang rover sport 2014 , 10 sec after buckup all ok
7) Kia
Kia optima mileage correction: ok
Kia sorento um 2016 ok obd2
KIA Sportage 2014 + with D70F3536 (no external EEPROM) ok
KIA Optima 2014 + with D70F3536 (no external EEPROM) ok
KIA Sorento 2014+ with D70F3523 (no external EEPROM) ok
- Kia optima white numbers screen with 24c16 not ok by obd BUT you have to choose kia sportage R D70F3423 and all ok to white version. To .... red version optima 24c16 goes ok
Kia cadenza 2012 inside is 93c66 you have to remove dash...not sure about 2013
8) Ford
Ford Tourneo 2015 H9S12EXQ384
Read ori Value ok
Focus 2013 OK
Ford fiesta 2012 OK
Ford Fiesta SES up to 2009 it will work after 2009 it wont work for fiesta
Ford Ecosport 2014 1 min by obd ok, It's like new fiesta same cluster Ecosport
9) Fiat
Fiat grand punto 2010 OK
Fiat punto 2007 OK
Fiat fiorino obd ok
Fiat Strada Adventure 2008 Brazil (Marelli Auto) OK
Fiat qubo/fiorino obd ok
Fiat Fiorino 2010 - OK
Fiat Fiorino 2012 - OK
10) Porsche
Porsche Cayenne 2012 mileage OK
Porsche cayenne 2004 mileage done in seconds
11) Mazda change KM
Mazda 6-2015 via obd -ok
Mazda 3-204-2015 obd-ok
Mazda cx-9 2008 ok
Mazda Atenza c56 old and c66 new inside, ok
Mazda Axela c56 Old and c66 new ok
Mazda Demio c66 ok
Mazda 3. year 2013. in 5 seconds OK by Obd2
12) Dodge
Dodge Durango 2007 (as Chrysler RAM 2006-2008) – OK
Dodge RAM 2007.. by OBD2 OK
8) Others
Benz yes bmw no
Honda civic 2006 all keys lost OK
Jeep grand cherokee 2013 OK
Jeep compas 2014 for obd2 2008+
I20 24c16 ok (Note: if you WANT TO DO KM IN HYUNDAI I20 THEN YOU HAVE TO PUT KM 4 TIME MORE EX. 1000 KM NEED THEN PUT 4000 KM IN X100.)
2006 Chrysler 300c -> will do dash via obd but won’t do SRI
Hummer H2 2008 via obd ok
2014 Altima Via obd ok
i20 by obd ok ..... so i had to make the x4 solution given on this thread example for 25300km = 25300x4 ; sometimes gives 9999999 some times 564873248 whatever but keep trying 1 or more number more on total.
Rio obd ok
Octavia 2012-nec24c64-ok
2010 Cadillac escalade odo via obd – ok
Citroen Nemo 2008 - OK
Peugeot Bipper 2012 – OK
Ssanyong Actyon Sport 2013.. by OBD2 OK
Jaguar xj 2013 dash all digital like the one in rover new .....obd O.K
X-100 Pro mileage Fail:
Ibiza 2015 failed
Car had 110,581 kms x100 displayed 442,xxx kms
Volkswagen Polo 2012 with Nec+95320 can't do it, security access failed
AUDI a3 2011 not work, advise you can do it with vvdi, vvdi2
2006 chrysler pacifica immo no connection (8th November, 2015 update)
Hyundai Verna Fludic 2015 pertol but no communication with x 100(20th November, 2015)
98 beetle NOT OK(22nd November, 2015)
Volkswagen Caddy 2015 white meter with NEC24c64 failed (27th November, 2015)
Can't reset Volkswagen DSG also Cruze BCM
Ford f-150 2012 lariat, X100pro doesn't modify it by OBD
Ranger 24c14 not ok
Mazda BT50 not in menu of mazda, in xtool work mazda bt50 y Ranger, not in obdstar.
galaxy 2012 color screen doesn't work goes to boot mode then reset then boot mode .....
hyundai tucson 2012 not in list, while tucson inside 93c66 easy to make it by eep.
vw voyage 2014, not working!
Ford Escape == Security Failed
Hyundai Accent / I25 2015 D70F3421 + 24C16 didn't work, Didn't work even as Azera.
Ford Fiesta SES 2012, no working.
OBDSTAR X-100 Pro tested Okay on key programming:
Beside odometer, OBDSTAR X-100 Pro can do key programming also extract pin code in many brands, some users were impressed by ignition ON on same cars, also to pull out pin code in 5 second.
It can do key programming for PSA ford fiat VAG.
Toyota 4Runner (2006) ok
Lexus RX400H (2005) ok
For Honda it's great edit vin etc
For Nissan smart keys it's awesome
For Toyota ck100 all keys lost
Works on Hyundai and Kia
Did Kia Ria 2014 with I4D60.... Cannot read pin but programmed key when we had pin.
Did Hyundai i10 2012. Read Pin and programmed 7936 (ID46). Quick and easy.
Do key for great wall volex c30 2012 read pin code programme key ok
k13 worked perfect
Insignia 2011 read security code +program keys OK
Just make key for ford focus 2011 on 80bit tranposnder 10 min job done
OBDSTAR X-100 Pro tested fail on key programming:
Toyota not so great (18th November, 2015 update)
for ford it's terrible (18th November, 2015 update)
Relate Product:
This is from EOBDTOOL website technical support: OBDSTAR X-100 PRO Mileage Correction and key programming Feedback 2016.7.13
What About OBDSTAR VAG Pro Functions?
OBDSTAR VAG Pro is professional hand-held IMMO Key Programming & Mileage Adjustment Tool for VW, Audi, Skoda and Seat. Work via OBD2 directly. OBDSTAR VAG-Pro support SRS,Oil/Service Reset function as well.
I. OBD Diagnostic Function
II. OBDSTAR VAG Pro Special Function;
1. Mileage adjustment;
2. Read Security code;
3. Maintenance Reset ;
4. EPB(Electronic Park Brake);
5. TPS(Throttle Position Matching);
6. Program Keys;
7. Program Remote;
8. Replace Storage Battery;
9. Repair Airbags;
10. Steering Angle Learning;
OBDSTAR VAG-Pro Features
1. Support basic diagnosis for all series car models;
2. Support mileage adjustment for Audi A3, A4(RB4/RB5), A4L, A5, A6, A6L, A8L, Q5, Q7, S5, R8, TT;
3. Support mileage adjustment for VW Bora, Beetle, Caddy, CC, EOS, Lavida, Magotan, Golf, GTI, Jetta, Passat,
Phaeton, POLO, Scirocco, Sharan, T5, Tiguan, Touareg, Touran, Tansporter etc..
4. Support mileage adjustment for Fabia, Octavia, Superb, Altea、Ibiza、Leon etc.
5. Support read secutiry code for the 3RD generation immobiliser Bora, Golf, Passat, Lingyu, Jetta, Polo, Sharan etc..
6. Support read security code and Immobiliser for the 3.5 generation immobiliser Lavida, Sagitar, Caddy, Touran, Octavia etc.
7. Support read security code for the 3.5 generation Immobiliser Audi 03-05 A4(RB4), 06-07 A4(RB8), (At present,
most device cannot support read security code, when replace used instrument, it is needed. )
8. One click Maintenance reset, no need any channel number, support small and big maintenance auto reset for the latest models till 2014
A8L,A7, A6L, A5, A4L, A3, A1, Q5, Q7,Q3, TT, Magotan, CC, Lavida, Satigar, Passat, Superb, Fabia, Tiguan, Tiguan, Scirocco,
EOS, Touareg, Gran Lavida etc.
9. Support replace brake pads for the cars with EPB, support brake pad thickness input directly, intelligent operation, no need channel number;
10. Support throttle position matching, auto-identification vehicles, intelligent operation;
11. Before the 4th generation immobiliser, support intelligently program keys , no need channel number;
12. Before the 4th generation immobiliser, support intelligently program remote, no need channel number;
13. Replace storage battery for the vehicles with Automatic start-stop device;
14. Repair airbags collision data for old VW5, VW51 etc.;
15. Steering angle learning for G85;
16. VW, AUDI the 4/5th generation adapter is being developed, support optional.
This is from EOBDTOOL website technical support: What About OBDSTAR VAG Pro Functions?

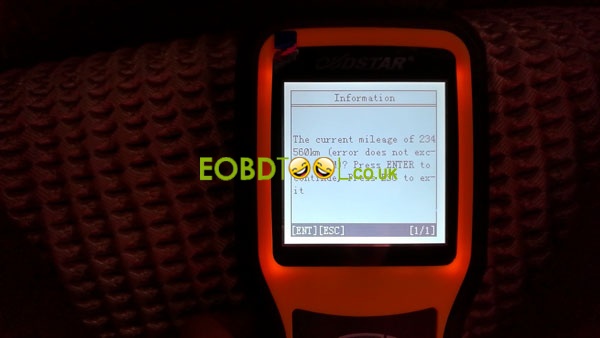

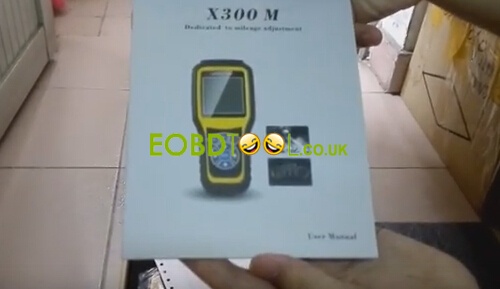

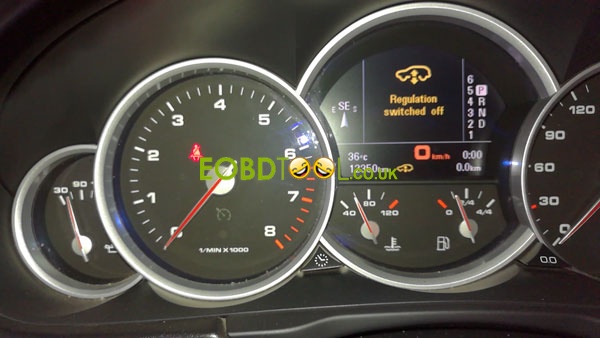

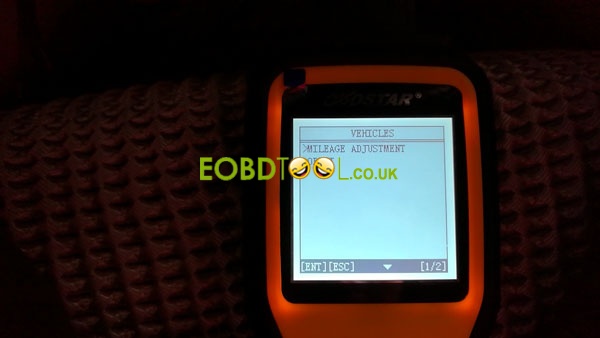

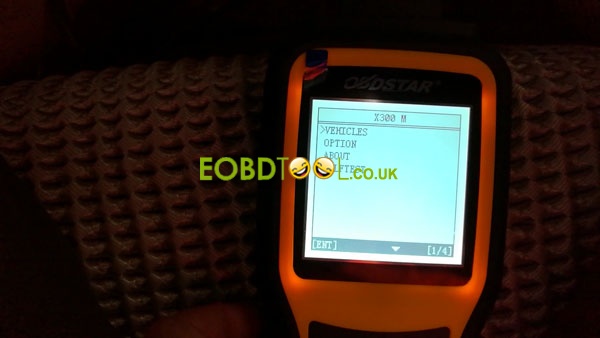

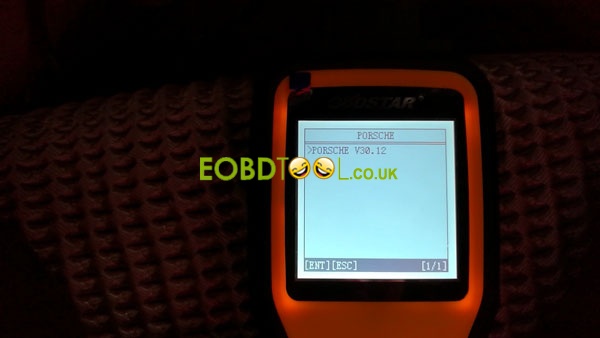

Porsche Cayenne 2008 change km, OBDSTAR X300M or X300 PRO3?

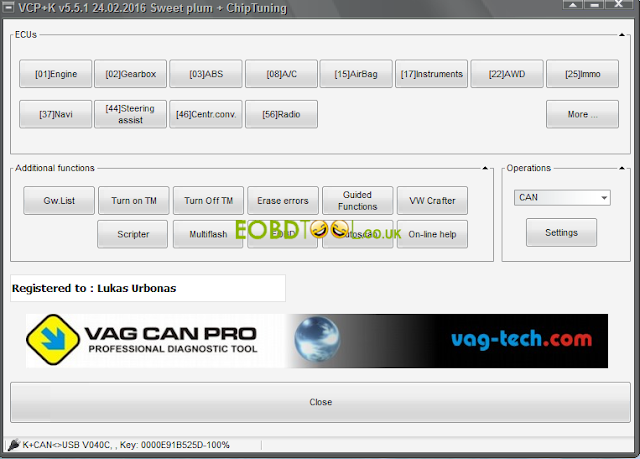

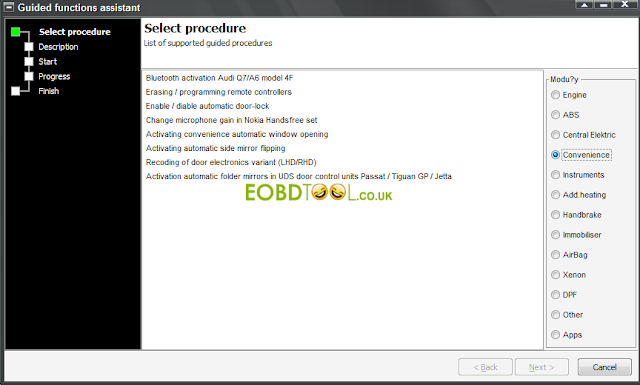

€45 VAG CAN PRO 5.5.1 full kit do coding programing without engineer codes
- Audi
- Mercedes
- Seat
- Skoda
- Volkswagen
more anecdotally, sometimes with some encodings require VCDS resume it several times before it is taken into account by the vehicle, while with VAG CAN PRO + K it works 1 shot.
It also has a backup feature and flashing the entire contents of a computer, that does not have the VCDS software.
