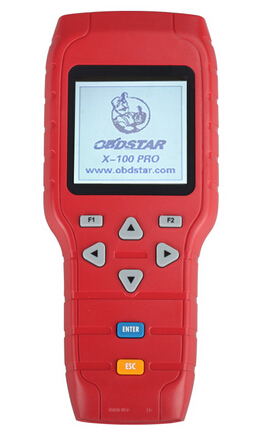

OBDSTAR X-100 PRO Mileage Correction and key programming Feedback 2016.7.13

OBDSTAR X-100 Pro tested okay for the following models on mileage change:

1)For VAG group vehicles:

Audi A3 is on the list from 2003 - 2006, 2007- up personally I have not tried

Audi A3 2008 monocolore OK

it can make Audi normal a6 before 2009

Volkswagen Tiguan 2013 TFT color dash nec+24C64 ok

Volkswagen caddy 2014 white meter NEC24C64 via obd

Volkswagen Caddy 2014 with TFT Color dash via obd

Volkswagen Caddy 2014 with TFT Color dash via obd

Seat Ibiza 2014 Via obd ok

Volkswagen Polo 2014 with NEC24C64

Volkswagen Polo 2014 White Meter NEC24C64 using golf menu OK

-Vw polo 2012- Make back up of Eeprom first save it then do the mileage correction. If the reading is failed means u can't proceed to the mileage correction I do many many polo with this tool just plug and play.

06 a8 OK

2013 golf with black/white screen - OK (with latest update)

Golf 6 2012 white color, write 2 sec !!

Q5 2013 via obd ok

Tiguan 2012 tft color NEC24C64 ok

Passat 2009 mileage nec+24c32 OK

kia sportage r 2014 d70f423 mileage tested ok

Can support vw micronas

Skoda Octavia 2010 nec+24c32 VDO mileage OK

Skoda Superb 2012 via obd mileage ok

Polo 2004 VDO k Line mileage OK

Audi A4 2007... in 20 seconds by OBD.

Volkswagen Amarok 2014 ok ( chose golf NEC 24C64 white meter 2013-)

2013 jetta mono display ok.

Audi q5 2010 obd ok

Audi Q5 2011 OK

visteon dash 95320 vw golf 5 with success, just plug and play

Audi a4l 2012 by obd ok

2012 jetta nec+24c64 black/white display-20 sec ok

VW T5 2011 - OK

2013 audi SQ5!  15min obd

PERFECT WORK IN GOLF 7 ALL MODELS

2) For Hyundai change KM/miles

Hyundai verna fluidic obd ok

Hyundai accent 2012 by obd ok 24c16

Hyundai Creta D70F3525 ok

Hyundai Verna 24c16 ok

I20 2015 TESTED.VERY GOOOD.OK OK OK

Hyundai Accent 2011... by obd in 2 seconds

hyundai Accent 2011... by obd in 2 seconds

Hyundai I20 2015+ with D70F35xx (no external EEPROM) ok

Hyundai Genesis 2015+ with D70F3523 (no external EEPROM) ok

hyundai accent (korea) 24c16 obd not ok but choose AZERA D70F3423 and read km write ok and did same with RIO but choose kia ceed D70F3423

Hyundai I 20 Elite via obd ok

Hyundai Creta Via obd ok

Hyundai accent Blue 2014 work ok in Hyundai azeera option

Hyundai Accent 2011 - OK

Hyundai Accent 2012 - OK

Hyundai Sonata 9

3)Kia

Kia Sportage with 24c16 2012 work perfect

Kia sportage 2013 round dash screen obd success

Kia sorrento 24c16 al ok obd

Kia soul also as kia ceed goes ok .... also did ML W164 obd ok. After recalibration remove fuse or batterry for 5 sec and ok

Kia Sportage 2013 24c16 via obd2 ok

kia Sportage 2014 D70F3536 via obd2 ok

4) Opel

Opel Isignia 2011 works well via obd

Astra J 2010 ok

Astra J 2011 read Security Code ok (via gm cruze)

Opel Insignia 2009/2011 OK

Opel Zafira 2012 OK

Opel astra 2010 2011 2012 NOT OK

Opel Insignia 2010 - OK

5) Chevrolet

Chevrolet Cruze 2010, 2011, 2012 via obd Ok

Chevrolet Cruze 2014 via obd take less than 4 seconds

Chevrolet cruze lt 2012 alla key lost ....OK 10 min programing and mileage correction ok

Chevrolet CRUZE 2012, Read security code ok and Mileage ok

Chevrolet Cruze 13 miles ok

Chevrolet Captiva 2012, 2013 ok

Chevrolet tahoe 2009 obd ok

Chevrolet Cruze 2010 - OK

Chevrolet Cruze 2011 - OK

6) Range Rover

Range Rover Evoque 2013 via obd ok

Range Rover Evoque SD4 2013 ok less than 2 seconds

Evoque 2012 works OBD

Rang rover sport 2014 , 10 sec after buckup all ok

7) Kia

Kia optima mileage correction: ok

Kia sorento um 2016 ok obd2

KIA Sportage 2014 + with D70F3536 (no external EEPROM) ok

KIA Optima 2014 + with D70F3536 (no external EEPROM) ok

KIA Sorento 2014+ with D70F3523 (no external EEPROM) ok

- Kia optima white numbers screen with 24c16 not ok by obd BUT you have to choose kia sportage R D70F3423 and all ok to white version. To .... red version optima 24c16 goes ok

Kia cadenza 2012 inside is 93c66 you have to remove dash...not sure about 2013

8) Ford

Ford Tourneo 2015 H9S12EXQ384

Read ori Value ok

Focus 2013 OK

Ford fiesta 2012 OK

Ford Fiesta SES up to 2009 it will work after 2009 it wont work for fiesta

Ford Ecosport 2014 1 min by obd ok, It's like new fiesta same cluster Ecosport

9) Fiat

Fiat grand punto 2010 OK

Fiat punto 2007 OK

Fiat fiorino obd ok

Fiat Strada Adventure 2008 Brazil (Marelli Auto) OK

Fiat qubo/fiorino obd ok

Fiat Fiorino 2010 - OK

Fiat Fiorino 2012 - OK

10) Porsche

Porsche Cayenne 2012 mileage OK

Porsche cayenne 2004 mileage done in seconds

11) Mazda change KM

Mazda 6-2015 via obd -ok

Mazda 3-204-2015 obd-ok

Mazda cx-9 2008 ok

Mazda Atenza c56 old and c66 new inside, ok

Mazda Axela c56 Old and c66 new ok

Mazda Demio c66 ok

Mazda 3. year 2013. in 5 seconds OK by Obd2

12) Dodge

Dodge Durango 2007 (as Chrysler RAM 2006-2008) – OK

Dodge RAM 2007.. by OBD2 OK

8) Others

Benz yes bmw no

Honda civic 2006 all keys lost OK

Jeep grand cherokee 2013 OK

Jeep compas 2014 for obd2 2008+

I20 24c16 ok (Note: if you WANT TO DO KM IN HYUNDAI I20 THEN YOU HAVE TO PUT KM 4 TIME MORE EX. 1000 KM NEED THEN PUT 4000 KM IN X100.)

2006 Chrysler 300c -> will do dash via obd but won’t do SRI

Hummer H2 2008 via obd ok

2014 Altima Via obd ok

i20 by obd ok ..... so i had to make the x4 solution given on this thread example for 25300km = 25300x4 ; sometimes gives 9999999 some times 564873248 whatever but keep trying 1 or more number more on total.

Rio obd ok

Octavia 2012-nec24c64-ok

2010 Cadillac escalade odo via obd – ok

Citroen Nemo 2008 - OK

Peugeot Bipper 2012 – OK

Ssanyong Actyon Sport 2013.. by OBD2 OK

Jaguar xj 2013 dash all digital like the one in rover new .....obd O.K

X-100 Pro mileage Fail:

Ibiza 2015 failed

Car had 110,581 kms x100 displayed 442,xxx kms

Volkswagen Polo 2012 with Nec+95320 can't do it, security access failed

AUDI a3 2011 not work, advise you can do it with vvdi, vvdi2

2006 chrysler pacifica immo no connection (8th November, 2015 update)

Hyundai Verna Fludic 2015 pertol but no communication with x 100(20th November, 2015)

98 beetle NOT OK(22nd November, 2015)

Volkswagen Caddy 2015 white meter with NEC24c64 failed (27th November, 2015)

Can't reset Volkswagen DSG also Cruze BCM

Ford f-150 2012 lariat, X100pro doesn't modify it by OBD

Ranger 24c14 not ok

Mazda BT50 not in menu of mazda, in xtool work mazda bt50 y Ranger, not in obdstar.

galaxy 2012 color screen doesn't work goes to boot mode then reset then boot mode .....

hyundai tucson 2012 not in list, while tucson inside 93c66 easy to make it by eep.

vw voyage 2014, not working!

Ford Escape == Security Failed

Hyundai Accent / I25 2015 D70F3421 + 24C16 didn't work, Didn't work even as Azera.

Ford Fiesta SES 2012, no working.

OBDSTAR X-100 Pro tested Okay on key programming:

Beside odometer, OBDSTAR X-100 Pro can do key programming also extract pin code in many brands, some users were impressed by ignition ON on same cars, also to pull out pin code in 5 second.

It can do key programming for PSA ford fiat VAG.

Toyota 4Runner (2006) ok

Lexus RX400H (2005) ok

For Honda it's great edit vin etc

For Nissan smart keys it's awesome

For Toyota ck100 all keys lost

Works on Hyundai and Kia

Did Kia Ria 2014 with I4D60.... Cannot read pin but programmed key when we had pin.

Did Hyundai i10 2012. Read Pin and programmed 7936 (ID46). Quick and easy.

Do key for great wall volex c30 2012 read pin code programme key ok

k13 worked perfect

Insignia 2011 read security code +program keys OK

Just make key for ford focus 2011 on 80bit tranposnder 10 min job done

OBDSTAR X-100 Pro tested fail on key programming:

Toyota not so great (18th November, 2015 update)

for ford it's terrible (18th November, 2015 update)

Relate Product:

OBDSTAR X300M OBD2 Odometer Adjustment Tool Perfect as X100 Pro Mileage Correction Tool

This is from EOBDTOOL website technical support: OBDSTAR X-100 PRO Mileage Correction and key programming Feedback 2016.7.13

(6-30) OBDSTAR X100 / X200 PRO Newest Update nformation

Newest Update for OBDSTAR X100 PRO in these functions: IMMO programming, mileage adjustment, Oil reset, EPB function and some optimal corrections. OBDSTAR X200 PRO newest update is adding MAZDA motor steering angle reset.

OBDSTAR X100 PRO:

OBDSTAR X200 PRO:

Adding IMMO programming for X100 PRO:

1. Adding SGMW 560 IMMO programming system (no pin code);
2. Opening Isuzu MU-X smart key system;
3. Opening Isuzu D-MUX remote control IMMO system;
4. Adding the TRUMPCHI GA3 (GA3S) IMMO system;
5. Adding TRUMPCHI GA3 (GA3S) smart key system;
6. Adding TRUMPCHI GA5 IMMO system;
7. Adding TRUMPCHI GA5 smart key system;
8. Adding TRUMPCHI GA6 IMMO system;
9. Adding TRUMPCHI GA6 smart key system;
10. Adding TRUMPCHI GA8 IMMO system;
11. Adding TRUMPCHI GA8 smart key system;
12. Adding TRUMPCHI GS4 IMMO system;
13. Adding TRUMPCHI GS4 smart key system;
14. Adding in TRUMPCHI GS5 (subscription) IMMO system;
15. Adding in TRUMPCHI GS5 (subscription) smart key system;
16. Adding TRUMPCHI Zeng program electric vehicle IMMO system;
17. Adding Peugeot OBD pin code to read;

1007

206

207

208

2008

301

306

307

308

3008

406

407

408

4007

508

5008

607

806

807

Bipper

Expert

Partner

.......................

18. Adding Citroen OBD pin code to read;

C2

C3

C3 Picasso

C3 Pluriel

C4 Cactus

C4 Picasso

C4L

C5

C8

C-Elysee (New)

Xsara Picasso

Berlingo 2

Berlingo 3

Jumper

Jumpy

Triumph

Sega

........................

19. Adding DS OBD pin code to read;

DS3

DS4

DS5

.......................

20. Adding BESTURN X80 smart key system;
21. Adding IMMO system and old BESTURN (CAN) no pin code to read;
22. Opening BESTURN B90 Smart Card no pin code to program;
23. Opening BESTURN B30 Key no pin code to program;
24. Adding Great Wall H5 commemorative Delphi gasoline (4G63T MT80) IMMO system;
25. Adding Great Wall H5 commemorative Bosch Diesel (Bosch 4D20) IMMO system;
26. Adding Chang'an 2016 CS35 remote program;
27. Adding Chang'an 2016 CS35 smart key program;
28. Adding KIA KX3 smart key program;
29. Adding Toyota type 3 remote program;
30. Adding Dongfeng Fengshen A60-A14T IMMO remote program system;
31. Adding Dongfeng Fengshen AX3 (DFM A15 MT22.1) vehicle control system;
32. Adding Dongfeng Fengshen AX3 (DFM A15 MT22.1) IMMO system;
33. Adding Dongfeng Fengshen AX3 (DFM A14T MT62.1) vehicle control system;
34. Adding Dongfeng Fengshen AX3 (DFM A14T MT62.1) IMMO system;
35. Adding Dongfeng Fengshen AX3 (DFM A14T MT62.1) smart key system;
36. Adding Dongfeng Fengshen A60EV vehicle control system;
37. Adding JAC S3 Delphi IMMO system;
38. Adding JAC S3 UMC ECU Delphi IMMO system;
39. Adding Brilliance V5 PEPS smart new key program;
40. Adding Chery M16PHEV remote control system;
41. Adding Chery Smart Key System type 2;

Adding mileage adjustment system for X100 PRO

42. Adding Ford 2015 sharp boundary small color screen mileage adjustment;
43. Adding Porsche 918 2015 mileage adjustment;
44. Adding Subaru mileage adjustment;
45. Adding Suzuki Super Vitra Type 1 mileage adjustment;
46. Adding Suzuki Super Vitra Type 2 mileage adjustment;
47. Adding Suzuki Zexi mileage adjustment;
48. Adding Suzuki XL7 2006-2010 mileage adjustment;
49. Adding Ford Crown Victoria 2005- mileage adjustment;
50. Adding Ford E250 2008-2009 mileage adjustment;
51. Adding Ford E350 2008-2009 mileage adjustment;
52. Adding Ford E450 2008-2009 mileage adjustment;
53. Adding Ford Escape (import) 2008-2012 mileage adjustment;
54. Adding Ford Explorer 2004 mileage adjustment;
55. Adding Ford F150 2006-2007 mileage adjustment;
56. Adding Ford F250 2006-2007 mileage adjustment;
57. Adding Ford F350 2006-2007 mileage adjustment;
58. Adding Ford F450 2006-2007 mileage adjustment;
59. Adding Ford F500 2006-2007 mileage adjustment;
60. Adding Ford F550 2006-2008 mileage adjustment;
61. Adding Ford Five Hundred (500) miles adjustment;
62. Adding Ford Flex 2008-2012 mileage adjustment;
63. Adding Ford Focus 2005-2008 data recovery;
64. Adding Ford Freestar 2006-2007 mileage adjustment;
65. Adding Ford Freestyle 2005- mileage adjustment;
66. Adding Ford Merc Mariner 2008- mileage adjustment;
67. Adding Ford Town car 2005- mileage adjustment;
68. Adding Ford Taurus 2008-2009 mileage adjustment;
69. Adding Ford Taurus 2004 mileage adjustment;
70. Adding Geely GX9 mileage adjustment and data recovery function;
71. Adding Geely Brilliant GC9 data recovery function;
72. Adding Geely Global Hawk GX7 data recovery function;
73. Adding Great Wall Hafer H9 data recovery function;
74. Adding Chrysler Voyager 2015- mileage adjustment function;
75. Adding Hyundai HB20 mileage adjustment;
76. Adding Kia Rio 2015 mileage adjustment;

OBDSTAR X100 Pro support mileage adjustment car models (previous list before adding) for your information:

Volkswagen Tiguan 2013 TFT color dash NEC+ 24C64 ok

Heavy Cruze 2011 by OBD perfect in 2 min

Ford focus 2008, do fine

Opel Isignia 2011 works well via OBD

Range Rover Evoque 2013 via OBD ok

Honda Civic 2002 Europe version add key ok

VW golf 6 2009 OBD ok

FIAT Punto 2003 OBD ok

KIA Sportage 2012 OBD ok

Kia Sportage 2015 with D70F3423 works perfect

Kia Sportage 2014 with 24C16 works perfect

Audi Q5 facelift 2013, 3.0 Quattro via OBD ok (25min)

Audi SQ5 2013 via OBD ok

Opel Astra J 2010 2011 pull pin by OBD ok

Opel Meriva, Opel Astra G

Insignia 2009 2010 2011 ok

Hyundai I20 Elite via OBD ok

Hyundai Creata via OBD ok

Chevrolet Captiva via OBD ok

Chevrolet Cruze 2010, 2011, 2012 via OBD Ok

Ford Eecosport via OBD ok

Ford fiesta 2012 via OBD ok

Hyundai Verna Fludic Diesel and petrol 24c16 via OBD ok

Jeep Compass 2014 for obd2 2008+

Adding Oil reset system for X100-PRO:

77. Adding BAIC Beijing Automotive D70 auto-zero
78. Adding BAIC Beijing Automotive X65 auto-zero
79. Adding FAW Hongqi H7 auto-zero
80. Adding Changan new Benben auto-zero

Adding EPB function for X100 PRO:

81. Adding FAW Hongqi H7 EPB function;
82. Adding new BESTURN B70 EPB function;

Optimal correction for X100 PRO:

83. Optimized Peugeot, Suzuki, MAXUS, Ford, Mazda, Chery, Chang'an and other car IMMO remote programming;
84. Optimized Ford mileage adjustment;
85. Optimized of LANDROVER Oil/Service reset system;

This is from www.eobdtool.co.uk website technical support:(6-30) OBDSTAR X100 / X200 PRO Newest Update nformation
